2FFI brass

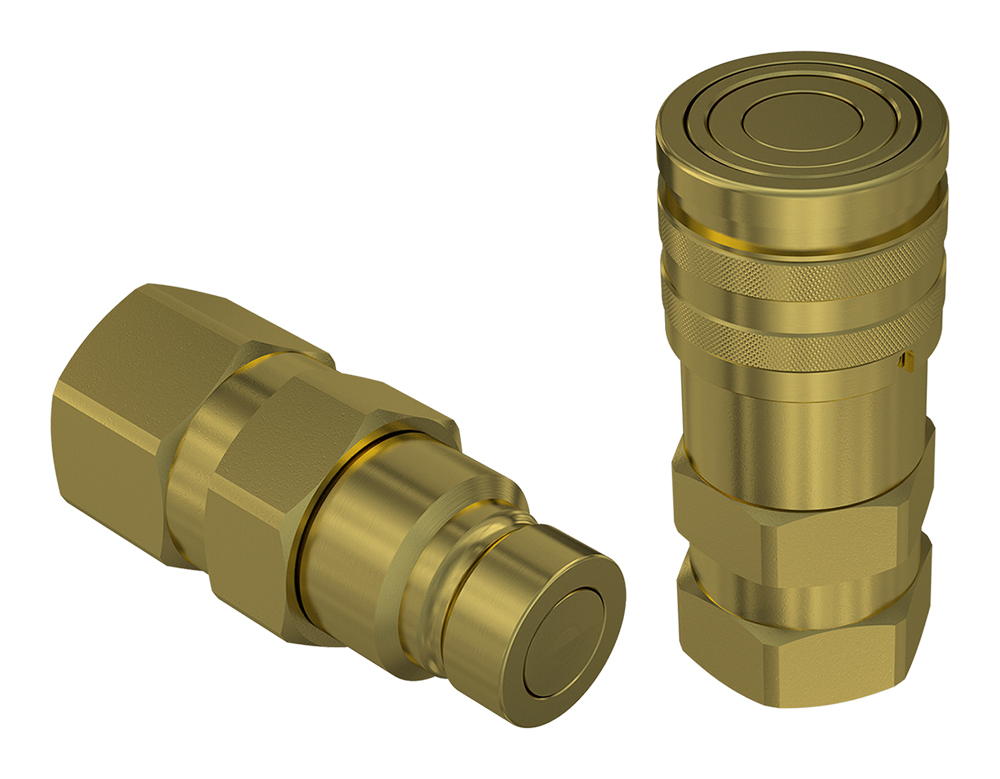

平面快速接头系列，ISO 16028标准，黄铜材质

平面快速接头系列，配备黄铜部件和FKM（氟橡胶）密封件。适合工业应用。与ISO 16028标准系列产品互换。
应用领域

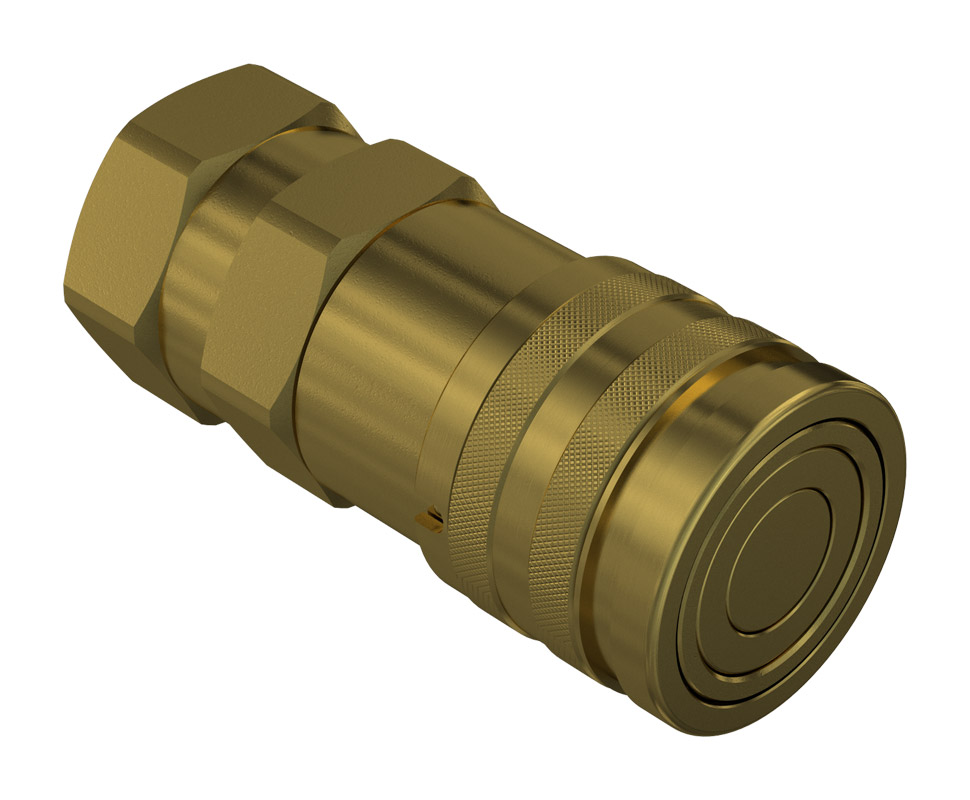

Female

阴接头

过滤项目
单位
订货号 Thread 更多详情 Hex1 D1
12,5 1/2 2FFI12-34NPTF5V NPTF 3/4" FEMALE
Specs
Working Pressure: 12.0 12.0 MPa
Flow Rate: 100 (l/min) at 0.2 MPa
Temperature: -20°C to 200°C
Seals: FKM
Weight: g
34 1,34 38 1,5

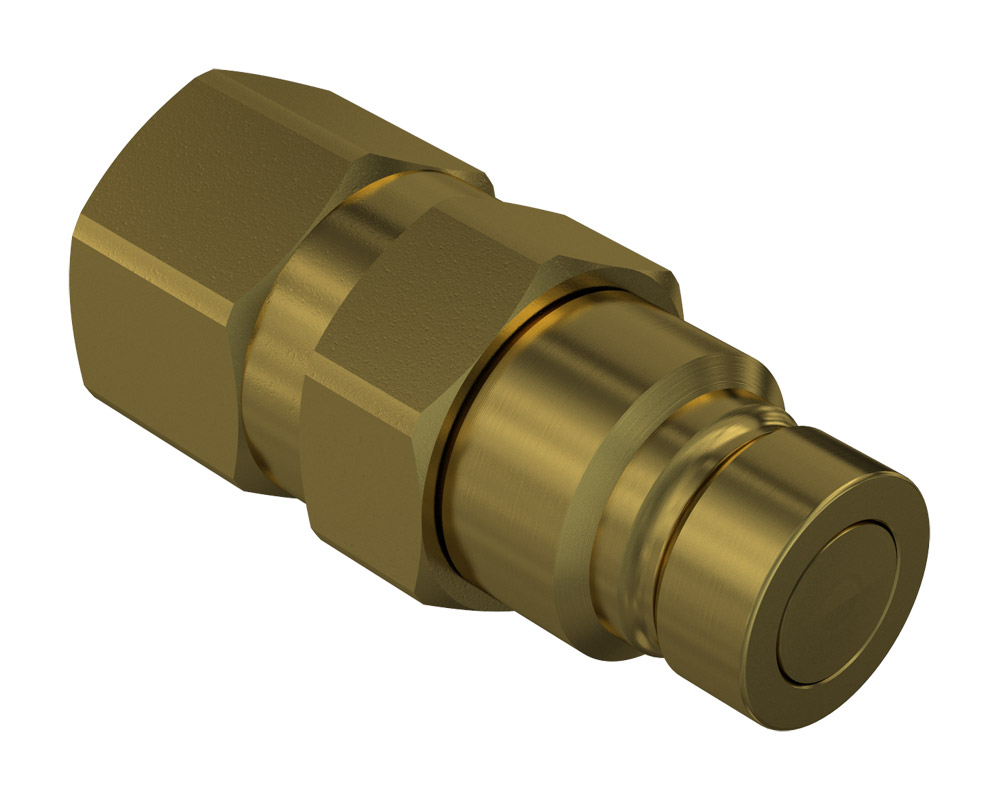

Male

阳接头

过滤项目
单位
订货号 Thread Details Hex1 D1
12,5 1/2 FFI12-34NPTM5V NPTF 3/4" FEMALE
Specs
Working Pressure: 12.0 12.0 Mpa
Flow Rate: 100 (l/min) at 0.2 MPa
Temperature: -20°C to 200°C
Seals: FKM
Weight: g
34 1,34 38 1,5
  • 防尘帽

配件与备件

防尘帽 - 阴接头
订货号 颜色 材质
TM 2FI12
orange
Plastic
TM 2FI12 N
black
Plastic
TM 2FI12 S
metal
Metal
Dust 防尘帽 - 阴接头
订货号 颜色 Material
TF 2FI12
orange
Plastic
TF 2FI12 N
black
Plastic
TF 2FI12 S
metal
Metal
技术标准
Dash Size Size (mm mm ) Working Pressure (MPa) Flow Rate (l/min) Spillage (ml) Force to connect (N) Male Burst pressure (MPa) Female Burst pressure (MPa) Male + Female Burst pressure (MPa)
1/2xx 12,5 12.0 100 0.01 220 50 50 50
1/2'xx 12.0 100 0.01 220 50 50 50
Material:
黄铜
密封件:
FKM
Working temperatures:
-20°C to 200 °C
Specifications:
Series Interchange:ISO 16028
Valve Type: 平面阀
Connection:Push to Connect
Disconnection: Sleeve Retraction
Connection Under Pressure: Not Allowed

压降

图中所示的数据是指示性的，没有约束性。
(§) 1 MPa = 10 bar
零件尺寸是指定的。

2FFI stainless steel flow diagram
