下载 PDF 产品系列

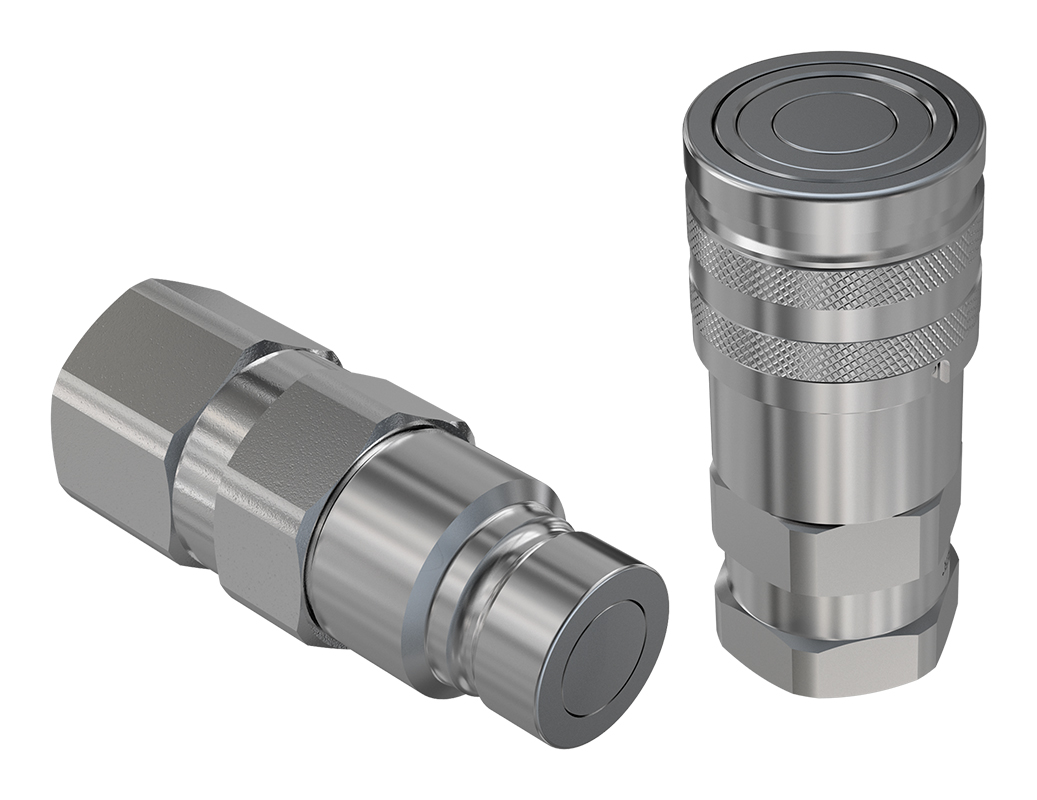

2FFI stainless steel

平面快速接头系列，ISO 16028标准，不锈钢材质

平面快速接头系列，配备不锈钢（AISI 316）部件和FKM（氟橡胶）密封件。高耐腐蚀性。与ISO 16028标准系列产品互换。

应用领域

项目
适用标准

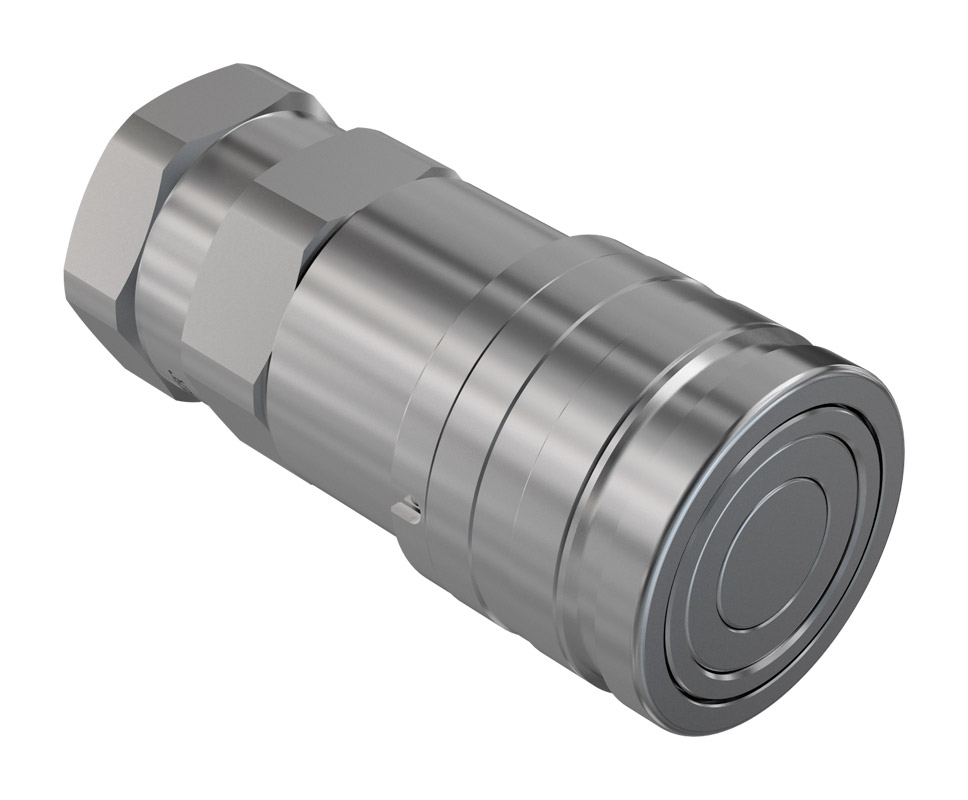

阴接头

过滤项目

单位

订货号

Thread

更多详情

Hex1

25 1

2FFI 1 GAS F 2V

BSPP 1" FEMALE

Specs
Hex1:	50 1,97
D1:	55 2,17
L1:	101 3,98
Working Pressure:	25.0 25.0 MPa
Flow Rate:	210 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	g

50 1,97

55 2,17

101 3,98

20 3/4

2FFI34 GAS F 2V

BSPP 3/4" FEMALE

Specs
Hex1:	41 1,61
D1:	48 1,89
L1:	3,95
Working Pressure:	25.0 25.0 MPa
Flow Rate:	160 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	852 g

41 1,61

48 1,89

3,95

20 3/4

2FFI34 NPT F 2V

NPTF 3/4" FEMALE

Specs
Hex1:	42 1,65
D1:	48 1,89
L1:	3,95
Working Pressure:	25.0 25.0 MPa
Flow Rate:	160 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	g

42 1,65

48 1,89

3,95

10 3/8

2FFN38 GAS F 2V

BSPP 3/8" FEMALE

Specs
Hex1:	27 1,06
D1:	30 1,18
L1:	2,88
Working Pressure:	25.0 25.0 MPa
Flow Rate:	45 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	250 g

27 1,06

30 1,18

2,88

10 3/8

2FFN38-12GASF2V

BSPP 1/2" FEMALE

Specs
Hex1:	27 1,06
D1:	30 1,18
L1:	2,95
Working Pressure:	25.0 25.0 MPa
Flow Rate:	45 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	239 g

27 1,06

30 1,18

2,95

10 3/8

2FFN38-3/18 F2V

M18x1.5 MALE 10S

Specs
Hex1:	27 1,06
D1:	30 1,18
L1:	2,91
Working Pressure:	25.0 25.0 MPa
Flow Rate:	45 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	g

27 1,06

30 1,18

2,91

12,5 1/2

2FFI12 GAS F 2V

BSPP 1/2" FEMALE

Specs
Hex1:	32 1,26
D1:	38 1,5
L1:	3,22
Working Pressure:	25.0 25.0 MPa
Flow Rate:	100 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	1156 g

32 1,26

38 1,5

3,22

12,5 1/2

2FFI12 NPT F 2V

NPTF 1/2" FEMALE

Specs
Hex1:	32 1,26
D1:	38 1,5
L1:	3,24
Working Pressure:	25.0 25.0 MPa
Flow Rate:	100 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	g

32 1,26

38 1,5

3,24

12,5 1/2

2FFI12-34GASF2E

Specs
Hex1:	34 1,34
D1:	38 1,5
L1:	3,3
Working Pressure:	25.0 25.0 MPa
Flow Rate:	100 (l/min) at 0.2 MPa
Temperature:	-40°C to 150°C
Seals:	EPDM
Weight:	g

34 1,34

38 1,5

3,3

12,5 1/2

2FFI12-34GASF2V

BSPP 3/4" FEMALE

Specs
Hex1:	34 1,34
D1:	38 1,5
L1:	3,3
Working Pressure:	25.0 25.0 MPa
Flow Rate:	100 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	g

34 1,34

38 1,5

3,3

6,3 1/4

2FFI14 GAS F2V

BSPP 1/4" FEMALE

Specs
Hex1:	24 0,94
D1:	27 1,06
L1:	2,31
Working Pressure:	25.0 25.0 MPa
Flow Rate:	20 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	g

24 0,94

27 1,06

2,31

6,3 1/4

2FFI14 GAS F2VS

Specs
Hex1:	24 0,94
D1:	27 1,06
L1:	2,31
Working Pressure:	25.0 25.0 MPa
Flow Rate:	20 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	g

24 0,94

27 1,06

2,31

6,3 1/4

2FFI14 NPT F 2

NPTF 1/4" FEMALE

Specs
Hex1:	24 0,94
D1:	27 1,06
L1:	2,31
Working Pressure:	25.0 25.0 MPa
Flow Rate:	20 (l/min) at 0.2 MPa
Temperature:	-25°C to 125°C
Seals:	NBR
Weight:	g

24 0,94

27 1,06

2,31

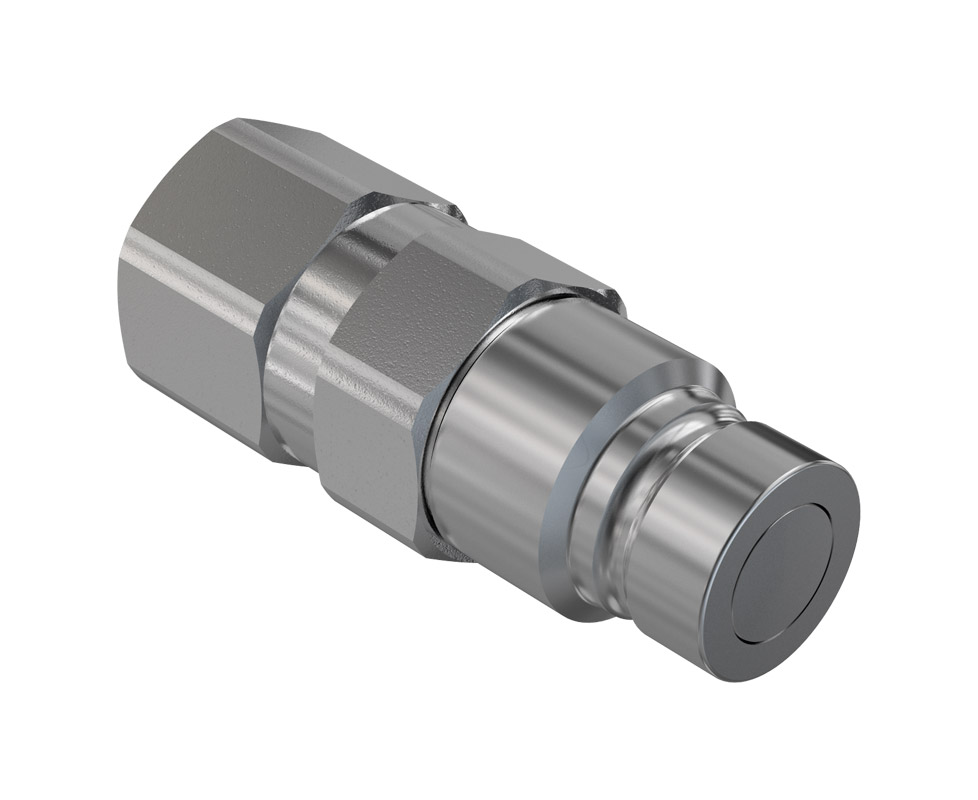

阳接头

过滤项目

单位

订货号

Thread

Details

Hex1

25 1

FFI 1 GAS M 2V

BSPP 1" FEMALE

Specs
Working Pressure:	25.0 25.0 Mpa
Flow Rate:	210 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	g

50 1,97

55 2,17

4,24

20 3/4

FFI34 GAS M 2V

BSPP 3/4" FEMALE

Specs
Working Pressure:	25.0 25.0 Mpa
Flow Rate:	160 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	688 g

42 1,65

46 1,81

3,91

20 3/4

FFI34 NPT M 2V

NPTF 3/4" FEMALE

Specs
Working Pressure:	25.0 25.0 Mpa
Flow Rate:	160 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	g

42 1,65

46 1,81

3,91

10 3/8

FFN38 GAS M 2V

BSPP 3/8" FEMALE

Specs
Working Pressure:	25.0 25.0 Mpa
Flow Rate:	45 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	g

30 1,18

67 2,64

10 3/8

FFN38-12GAS M2V

BSPP 1/2" FEMALE

Specs
Working Pressure:	25.0 25.0 Mpa
Flow Rate:	45 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	g

27 1,06

30 1,18

71 2,8

10 3/8

FFN38-3/18 M2V

M18x1.5 MALE 10S

Specs
Working Pressure:	25.0 25.0 Mpa
Flow Rate:	45 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	131 g

27 1,06

30 1,18

68 2,68

12,5 1/2

FFI12 GAS M 2V

BSPP 1/2" FEMALE

Specs
Working Pressure:	25.0 25.0 Mpa
Flow Rate:	100 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	298 g

32 1,26

35 1,38

3,29

12,5 1/2

FFI12 NPT M 2V

NPTF 1/2" FEMALE

Specs
Working Pressure:	25.0 25.0 Mpa
Flow Rate:	100 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	g

32 1,26

35 1,38

3,29

12,5 1/2

FFI12-34GASM2V

BSPP 3/4" FEMALE

Specs
Working Pressure:	25.0 25.0 Mpa
Flow Rate:	100 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	375 g

34 1,34

38 1,5

3,29

6,3 1/4

FFI14 GAS M2V

BSPP 1/4" FEMALE

Specs
Working Pressure:	25.0 25.0 Mpa
Flow Rate:	20 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	133 g

24 0,94

26 1,02

2,47

6,3 1/4

FFI14 GAS M2VL

Specs
Working Pressure:	25.0 25.0 Mpa
Flow Rate:	20 (l/min) at 0.2 MPa
Temperature:	-20°C to 200°C
Seals:	FKM
Weight:	g

24 0,94

26 1,02

2,47

防尘帽

配件与备件

防尘帽 - 阴接头

订货号	颜色	材质
TM 2FI1	orange	Plastic
TM 2FI1 N	black	Plastic
TM 2FI1 S	aluminum	Metal
TM 2FI12	orange	Plastic
TM 2FI12 N	black	Plastic
TM 2FI12 S	metal	Metal
TM 2FI14	orange	Plastic
TM 2FI14 N	black	Plastic
TM 2FI14 S	aluminum	Metal
TM 2FI34	orange	Plastic
TM 2FI34 N	black	Plastic
TM 2FI34 R	red	Plastic
TM 2FI34 S	metal	Metal
TM 2FN38 S	metal	Metal
TMF 38	orange	Plastic
TMF 38 B	blue	Plastic
TMF 38 G	yellow	Plastic
TMF 38 N	black	Plastic
TMF 38 R	red	Plastic
TMF 38 V	green	Plastic

Dust 防尘帽 - 阴接头

订货号	颜色	Material
TF 2FI1	orange	Plastic
TF 2FI1 N	black	Plastic
TF 2FI1 S	metal	Metal
TF 2FI12	orange	Plastic
TF 2FI12 B	blue	Plastic
TF 2FI12 N	black	Plastic
TF 2FI12 R	red	Plastic
TF 2FI12 S	metal	Metal
TF 2FI14	orange	Plastic
TF 2FI14 N	black	Plastic
TF 2FI14 S	metal	Metal
TF 2FI34	orange	Plastic
TF 2FI34 N	black	Plastic
TF 2FI34 R	red	Plastic
TF 2FI34 S	metal	Metal
TF 2FN38 S	metal	Metal
TFF 38	orange	Plastic
TFF 38 B	blue	Plastic
TFF 38 G	yellow	Plastic
TFF 38 N	black	Plastic
TFF 38 R	red	Plastic
TFF 38 V	green	Plastic

技术标准

Burst pressure (MPa)

Dash Size	Size (mm mm )	Working Pressure (MPa)	Flow Rate (l/min)	Spillage (ml)	Force to connect (N)	Male Burst pressure (MPa)	Female Burst pressure (MPa)	Male + Female Burst pressure (MPa)
1xx	25	25.0	210	0.03	280	100	100	100
1/2xx	12,5	25.0	100	0.01	220	100	100	100
1/4xx	6,3	25.0	20	0.006	95	100	100	100
3/4xx	20	25.0	160	0.02	215	100	100	100
3/8xx	10	25.0	45	0.008	115	100	100	100
1/4'xx		25.0	20	0.006	95	100	100	100
3/8'xx	10	25.0	45	0.008	115	100	100	100
1/2'xx		25.0	100	0.01	220	100	100	100
3/4'xx	20	25.0	160	0.02	215	100	100	100
1'xx	25	25.0	210	0.03	280	100	100	100

Material:
不锈钢

密封件:
FKM

Working temperatures:
-20°C to 200 °C

Specifications:
Series Interchange:ISO 16028
Valve Type: 平面阀
Connection:Push to Connect
Disconnection: Sleeve Retraction
Connection Under Pressure: Not Allowed

压降

图中所示的数据是指示性的，没有约束性。
(§) 1 MPa = 10 bar
零件尺寸是指定的。
