下载 PDF 产品系列

3FFH

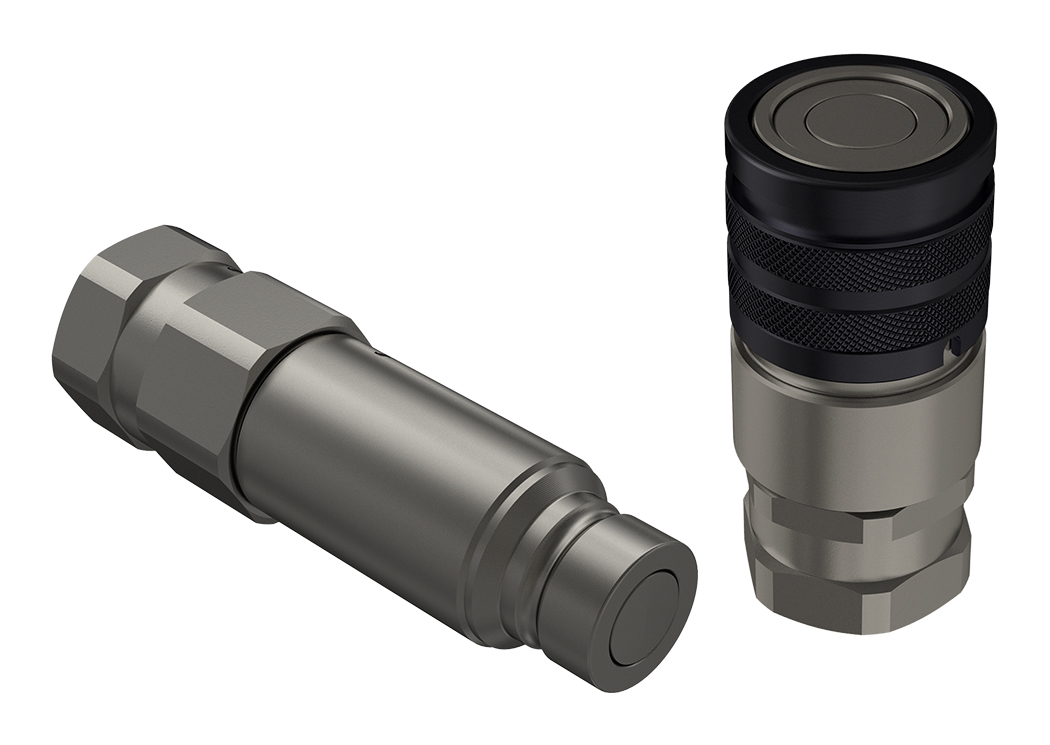

平面快速接头系列,ISO 16028标准，可带压连接

平面快速接头系列，可带残压连接。实际最大工作压力35 Mpa（5076 psi）。与ISO 16028标准系列产品互换。锌-镍涂层。允许3FFH阴接头带残压下与FFH阳接头连接，或者3FFH阳接头带压下与FFH阴接头连接。

应用领域

项目
适用标准

阴接头

过滤项目

单位

订货号

Thread

更多详情

Hex1

3FFH06 38GAS F

BSPP 3/8" FEMALE

Specs
Hex1:	27 1,06
D1:	30 1,18
L1:	75 2,95
Working Pressure:	0 0 MPa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	272 g

27 1,06

30 1,18

3FFH06-2/2215F

M22x1,5 MALE 15L

Specs
Hex1:	27 1,06
D1:	30 1,18
L1:	3,22
Working Pressure:	0 0 MPa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	279 g

27 1,06

30 1,18

3FFH12 1NPT F

NPTF 1" FEMALE

Specs
Hex1:	42 1,65
D1:	48 1,89
L1:	104 4,09
Working Pressure:	0 0 MPa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	g

42 1,65

48 1,89

3FFH12 34GAS F

BSPP 3/4" FEMALE

Specs
Hex1:	42 1,65
D1:	48 1,89
L1:	100 3,94
Working Pressure:	0 0 MPa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	903 g

42 1,65

48 1,89

3FFH08 34GAS F

BSPP 3/4" FEMALE

Specs
Hex1:	34 1,34
D1:	38 1,5
L1:	3,34
Working Pressure:	0 0 MPa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	g

34 1,34

38 1,5

3FFH08 12GAS F

BSPP 1/2" FEMALE

Specs
Hex1:	34 1,34
D1:	38 1,5
L1:	3,2
Working Pressure:	0 0 MPa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	460 g

34 1,34

38 1,5

3FFH08 12NPT F

NPTF 1/2" FEMALE

Specs
Hex1:	34 1,34
D1:	38 1,5
L1:	3,2
Working Pressure:	0 0 MPa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	464 g

34 1,34

38 1,5

3FFH08 34SAE FA

1-1/16"-12 UN FEMALE ORB

Specs
Hex1:	34 1,34
D1:	38 1,5
L1:	3,42
Working Pressure:	0 0 MPa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	g

34 1,34

38 1,5

3FFH08 58SAE F

7/8"-14 UNF FEMALE ORB

Specs
Hex1:	34 1,34
D1:	38 1,5
L1:	3,2
Working Pressure:	0 0 MPa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	452 g

34 1,34

38 1,5

3FFH08-61/34SFS

1-1/16"-12 UN 90° MALE

Specs
Hex1:	34 1,34
D1:	38 1,5
L1:	3,97
Working Pressure:	0 0 MPa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	660 g

34 1,34

38 1,5

3FFH08-61/38SFS

9/16"-18 UN 90° MALE

Specs
Hex1:	34 1,34
D1:	38 1,5
L1:	3,97
Working Pressure:	0 0 MPa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	g

34 1,34

38 1,5

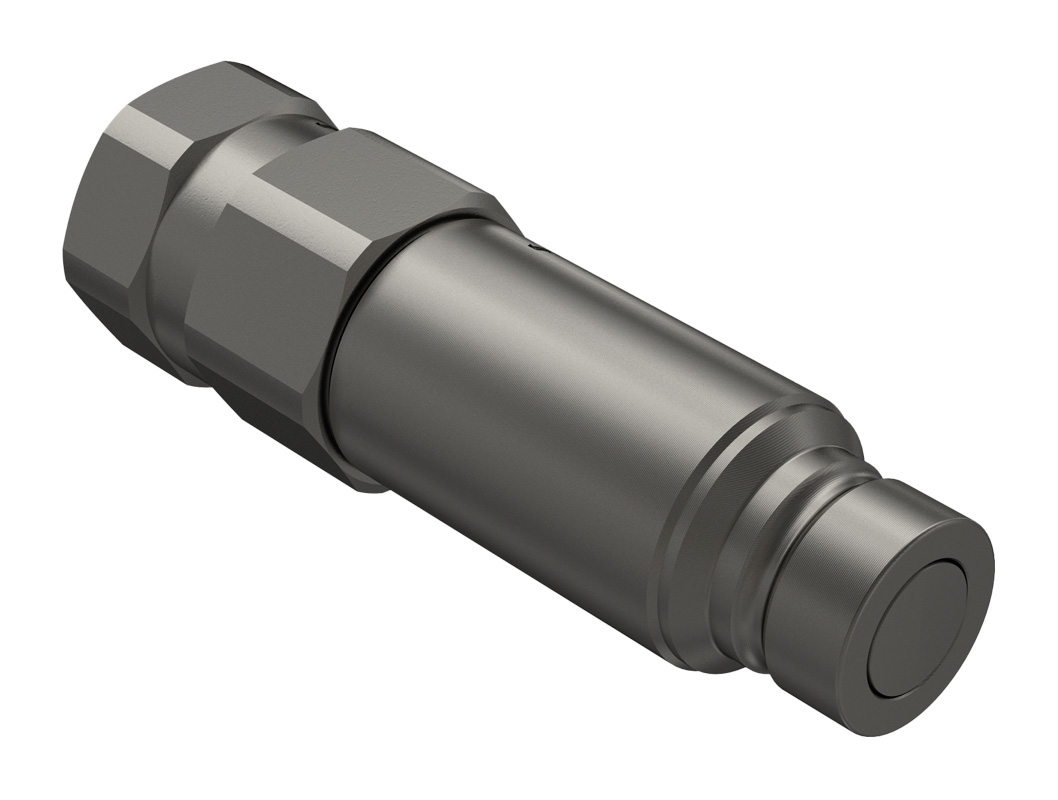

阳接头

过滤项目

单位

订货号

Thread

Details

Hex1

3FFH06 12GAS M

BSPP 1/2" FEMALE

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	307 g

30 1,18

33 1,3

19,7 0,78

3FFH06 12SAE M

3/4"-16 UNF FEMALE ORB

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	307 g

30 1,18

33 1,3

19,7 0,78

3FFH06 38GAS M

BSPP 3/8" FEMALE

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	305 g

30 1,18

19,7 0,78

3FFH06 38NPT M

NPTF 3/8" FEMALE

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	g

30 1,18

33 1,3

19,7 0,78

3FFH10 34NPT M

NPTF 3/4" FEMALE

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	g

41 1,61

45 1,77

1,06

3FFH10 34SAE M

1-1/16"-12 UN FEMALE ORB

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	g

41 1,61

45 1,77

1,06

3FFH12 1GAS M

BSPP 1" FEMALE

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	733 g

42 1,65

46 1,81

29,95 1,18

3FFH12 34GAS M

BSPP 3/4" FEMALE

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	787 g

42 1,65

46 1,81

29,95 1,18

3FFH12 34SAE M

1-1/16"-12 UN FEMALE ORB

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	g

42 1,65

46 1,81

29,95 1,18

3FFH12-1/34S M

1-1/16"-12 UN MALE

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	714 g

42 1,65

46 1,81

29,95 1,18

3FFH08 58SAE MC

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	391 g

36 1,42

1,55

24,5 0,96

3FFH08 12GAS M

BSPP 1/2" FEMALE

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	g

34 1,34

37 1,46

24,5 0,96

3FFH08 12NPT M

NPTF 1/2" FEMALE

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	g

34 1,34

37 1,46

24,5 0,96

3FFH08 12SAE M

3/4"-16 UNF FEMALE ORB

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	g

34 1,34

37 1,46

24,5 0,96

3FFH08 34GAS M

BSPP 3/4" FEMALE

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	440 g

34 1,34

37 1,46

24,5 0,96

3FFH08 34SAE M

1-1/16"-12 UN FEMALE ORB

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	g

34 1,34

37 1,46

24,5 0,96

3FFH08 58SAE M

7/8"-14 UNF FEMALE ORB

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	455 g

34 1,34

37 1,46

24,5 0,96

3FFH08-12/34S M

1-3/16"-12 UN MALE BULKHEAD ORFS

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	g

34 1,34

37 1,46

24,5 0,96

3FFH08-12/58S M

1"-14 UNS MALE BULKHEAD ORFS

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	552 g

34 1,34

37 1,46

24,5 0,96

3FFH08-14/12S M

3/4"-16 UN MALE BULKHEAD JIC

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	469 g

34 1,34

37 1,46

24,5 0,96

3FFH08-14/34S M

1-1/16"-12 UN MALE BULKHEAD JIC

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	544 g

34 1,34

37 1,46

24,5 0,96

3FFH08-14/34SMB

1-1/16"-12 UN MALE BULKHEAD JIC

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	g

34 1,34

37 1,46

24,5 0,96

3FFH08-14/58S M

7/8"-14 UNF MALE BULKHEAD JIC

Specs
Working Pressure:	0 0 Mpa
Flow Rate:	(l/min) at 0.2 MPa
Temperature:	-25°C to 100°C
Seals:	NBR;PUR
Weight:	g

34 1,34

37 1,46

24,5 0,96

防尘帽

配件与备件

防尘帽 - 阴接头

订货号	颜色	材质
TM 2FI12	orange	Plastic
TM 2FI12 N	black	Plastic
TM 2FI12 S	metal	Metal
TM 2FI34	orange	Plastic
TM 2FI34 N	black	Plastic
TM 2FI34 R	red	Plastic
TM 2FI34 S	metal	Metal
TM 2FN38 S	metal	Metal
TMF 38	orange	Plastic
TMF 38 B	blue	Plastic
TMF 38 G	yellow	Plastic
TMF 38 N	black	Plastic
TMF 38 R	red	Plastic
TMF 38 V	green	Plastic

Dust 防尘帽 - 阴接头

订货号	颜色	Material
TF 2FI12	orange	Plastic
TF 2FI12 B	blue	Plastic
TF 2FI12 N	black	Plastic
TF 2FI12 R	red	Plastic
TF 2FI12 S	metal	Metal
TF 2FI34	orange	Plastic
TF 2FI34 N	black	Plastic
TF 2FI34 R	red	Plastic
TF 2FI34 S	metal	Metal
TF 2FI58	orange	Plastic
TF 2FN38 S	metal	Metal
TFF 38	orange	Plastic
TFF 38 B	blue	Plastic
TFF 38 G	yellow	Plastic
TFF 38 N	black	Plastic
TFF 38 R	red	Plastic
TFF 38 V	green	Plastic

技术标准

Burst pressure (MPa)

Dash Size	Size (mm mm )	Working Pressure (MPa)	Flow Rate (l/min)	Spillage (ml)	Force to connect (N)	Male Burst pressure (MPa)	Female Burst pressure (MPa)	Male + Female Burst pressure (MPa)
3/8'xx	10	35.0	35	0.008	190	140	140	140
1/2'xx		35.0	65	0.01	200	140	140	140
5/8'xx	16	35.0	97	0.02	210	140	140	140
3/4'xx	20	35.0	115	0.02	220	140	140	140

Material:
碳钢

密封件:
NBR; PUR

Working temperatures:
-25°C to 100 °C

Specifications:
Series Interchange:ISO 16028
Valve Type: 平面阀
Connection:Push to Connect
Disconnection: Sleeve Retraction
Connection Under Pressure: Allowed Male Half up to W.P.

压降

图中所示的数据是指示性的，没有约束性。
(§) 1 MPa = 10 bar
零件尺寸是指定的。
