产品系列
CVC
工程机械专用螺纹旋紧连接快速接头系列

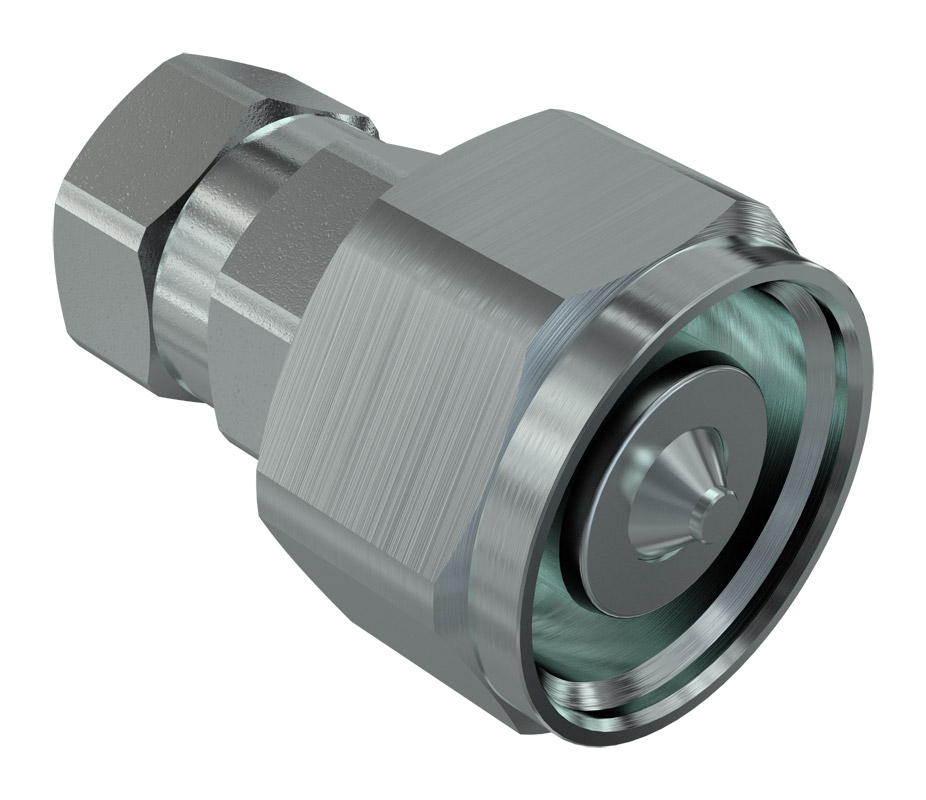

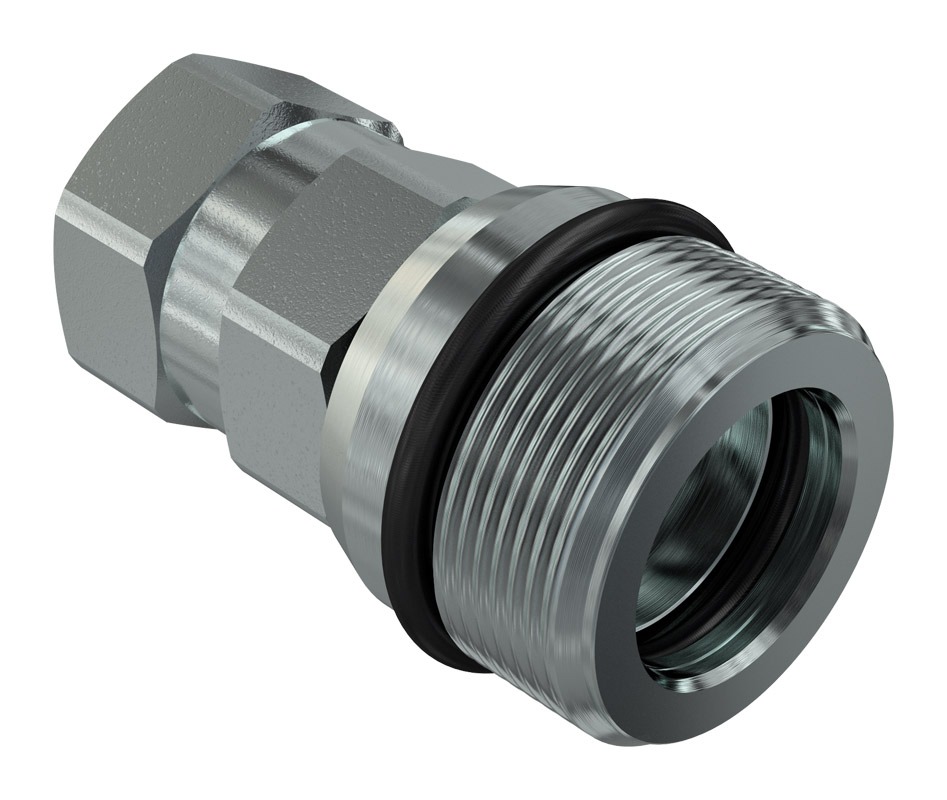

螺纹旋紧连接快速接头系列，专为履带式挖掘机应用设计。可带残压连接。高耐压力和流量脉冲性。配备一个六边形套筒和一个外部O形环，可保证高摩擦，并降低因振动而引起意外断开的风险。
应用领域
项目
适用标准
阴接头
阳接头
配件
防尘帽
阴接头
过滤项目
单位
Metric
Imperial
Size (mm)
12,5
25
25
Size (in)
1/2'
1/2
1
1'
订货号
Thread
更多详情
Hex1
D1
L1
25
1
|1|
CVC16 3015 F
M30x1,5 FEMALE
Specs
Hex1:
42
1,65
D1:
54
2,13
L1:
97
3,82
Working Pressure:
34.0
34.0
MPa
Flow Rate:
160 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
42
1,65
54
2,13
97
3,82
25
1
|1|
CVC16 78S F
1-3/16"-12 UN FEMALE ORB
Specs
Hex1:
42
1,65
D1:
54
2,13
L1:
97
3,82
Working Pressure:
34.0
34.0
MPa
Flow Rate:
160 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
42
1,65
54
2,13
97
3,82
25
1
|1|
CVC163/362 F
M36x2 MALE 25S
Specs
Hex1:
38
1,5
D1:
43
1,69
L1:
98
3,86
Working Pressure:
34.0
34.0
MPa
Flow Rate:
160 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
38
1,5
43
1,69
98
3,86
12,5
1/2
|1/2|
CVC080/2215 FC
Specs
Hex1:
27
1,06
D1:
35
1,38
L1:
60
2,36
Working Pressure:
34.0
34.0
MPa
Flow Rate:
50 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
27
1,06
35
1,38
60
2,36
12,5
1/2
|1/2|
CVC08 12 GAS F
BSPP 1/2" FEMALE
Specs
Hex1:
30
1,18
D1:
35
1,38
L1:
50
1,97
Working Pressure:
34.0
34.0
MPa
Flow Rate:
50 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
30
1,18
35
1,38
50
1,97
12,5
1/2
|1/2|
CVC08 58S F
7/8"-14 UNF FEMALE ORB
Specs
Hex1:
30
1,18
D1:
35
1,38
L1:
62
2,44
Working Pressure:
34.0
34.0
MPa
Flow Rate:
50 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
30
1,18
35
1,38
62
2,44
12,5
1/2
|1/2|
CVC080/2215 F
M22x1,5 FEMALE ORB
Specs
Hex1:
27
1,06
D1:
35
1,38
L1:
60
2,36
Working Pressure:
34.0
34.0
MPa
Flow Rate:
50 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
27
1,06
35
1,38
60
2,36
12,5
1/2
|1/2|
CVC0811/12S F
13/16"-16 UN MALE ORFS
Specs
Hex1:
27
1,06
D1:
35
1,38
L1:
58
2,28
Working Pressure:
34.0
34.0
MPa
Flow Rate:
50 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
27
1,06
35
1,38
58
2,28
12,5
1/2
|1/2|
CVC082/1815 F
M18x1,5 MALE 12L
Specs
Hex1:
27
1,06
D1:
35
1,38
L1:
56
2,2
Working Pressure:
34.0
34.0
MPa
Flow Rate:
50 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
27
1,06
35
1,38
56
2,2
阳接头
过滤项目
单位
Metric
Imperial
Size (mm)
12,5
25
25
Size (in)
1/2'
1/2
1
1'
订货号
Thread
Details
Hex1
D1
L1
25
1
|1|
CVC16 1SAE M
1-5/16"-12 UN FEMALE ORB
Specs
Working Pressure:
34.0
34.0
Mpa
Flow Rate:
160 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
950 g
42
1,65
72
2,83
91
3,58
25
1
|1|
CVC16 3015 M
M30x1,5 FEMALE
Specs
Working Pressure:
34.0
34.0
Mpa
Flow Rate:
160 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
42
1,65
72
2,83
90
3,54
25
1
|1|
CVC16 78S M
1-3/16"-12 UN FEMALE ORB
Specs
Working Pressure:
34.0
34.0
Mpa
Flow Rate:
160 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
42
1,65
72
2,83
90
3,54
25
1
|1|
CVC163/362 M
M36x2 MALE 25S
Specs
Working Pressure:
34.0
34.0
Mpa
Flow Rate:
160 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
38
1,5
72
2,83
91
3,58
25
1
|1|
CVC163/422 M
M42x2 MALE 30S
Specs
Working Pressure:
34.0
34.0
Mpa
Flow Rate:
160 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
46
1,81
72
2,83
88
3,46
25
1
|1|
CVC1634/12 M
SAE FLANGE 3/4
Specs
Working Pressure:
34.0
34.0
Mpa
Flow Rate:
160 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
42
1,65
72
2,83
89
3,5
25
1
|1|
CVC1634/12 MC
Specs
Working Pressure:
34.0
34.0
Mpa
Flow Rate:
160 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
72
2,83
89
3,5
12,5
1/2
|1/2|
CVC0812/12S MC
Specs
Working Pressure:
34.0
34.0
Mpa
Flow Rate:
50 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
27
1,06
45
1,77
80
3,15
12,5
1/2
|1/2|
CVC08 12 GAS M
BSPP 1/2" FEMALE
Specs
Working Pressure:
34.0
34.0
Mpa
Flow Rate:
50 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
30
1,18
45
1,77
48
1,89
12,5
1/2
|1/2|
CVC08 58S M
7/8"-14 UNF FEMALE ORB
Specs
Working Pressure:
34.0
34.0
Mpa
Flow Rate:
50 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
30
1,18
45
1,77
63
2,48
12,5
1/2
|1/2|
CVC080/2215 M
M22x1,5 FEMALE ORB
Specs
Working Pressure:
34.0
34.0
Mpa
Flow Rate:
50 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
27
1,06
45
1,77
61
2,4
12,5
1/2
|1/2|
CVC081/12S M
3/4"-16 UNF MALE
Specs
Working Pressure:
34.0
34.0
Mpa
Flow Rate:
50 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
27
1,06
45
1,77
57
2,24
12,5
1/2
|1/2|
CVC0812/12S M
13/16"-16 UN MALE BULKHEAD ORFS
Specs
Working Pressure:
34.0
34.0
Mpa
Flow Rate:
50 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
27
1,06
45
1,77
80
3,15
12,5
1/2
|1/2|
CVC0812/58S M
1"-14 UNS MALE BULKHEAD ORFS
Specs
Working Pressure:
34.0
34.0
Mpa
Flow Rate:
50 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
366 g
34
1,34
45
1,77
91
3,58
12,5
1/2
|1/2|
CVC082/2215 M
M22x1,5 MALE 15L
Specs
Working Pressure:
34.0
34.0
Mpa
Flow Rate:
50 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
27
1,06
45
1,77
58
2,28
防尘帽
配件与备件
防尘帽 - 阴接头
订货号
颜色
材质
TMCVC 08 S
metal
Metal
TMCVC 16 S
metal
Metal
Dust 防尘帽 - 阴接头
订货号
颜色
Material
TFCVC 08 S
metal
Metal
TFCVC 16 S
metal
Metal
技术标准
Burst pressure (MPa)
Dash Size
Size (
mm
mm
)
Working Pressure (MPa)
Flow Rate (l/min)
Spillage (ml)
Force to connect (N)
Male
Burst pressure (MPa)
Female
Burst pressure (MPa)
Male + Female
Burst pressure (MPa)
1/2xx
12,5
34.0
50
2
0
102
102
105
1xx
25
34.0
160
10
0
112
112
112
1/2'xx
34.0
50
0
102
102
105
1'xx
25
34.0
160
0
112
112
112
Material:
碳钢
密封件:
NBR
Working temperatures:
-25°C to 125 °C
Specifications:
Series Interchange:MARKET
Valve Type: 锥面阀
Connection:Screw to Connect
Disconnection: Unscrew to Disconnect
Connection Under Pressure: Allowed Residual
压降
图中所示的数据是指示性的，没有约束性。
(§) 1 MPa = 10 bar
零件尺寸是指定的。
Please wait...
This action may take few seconds
