FFC

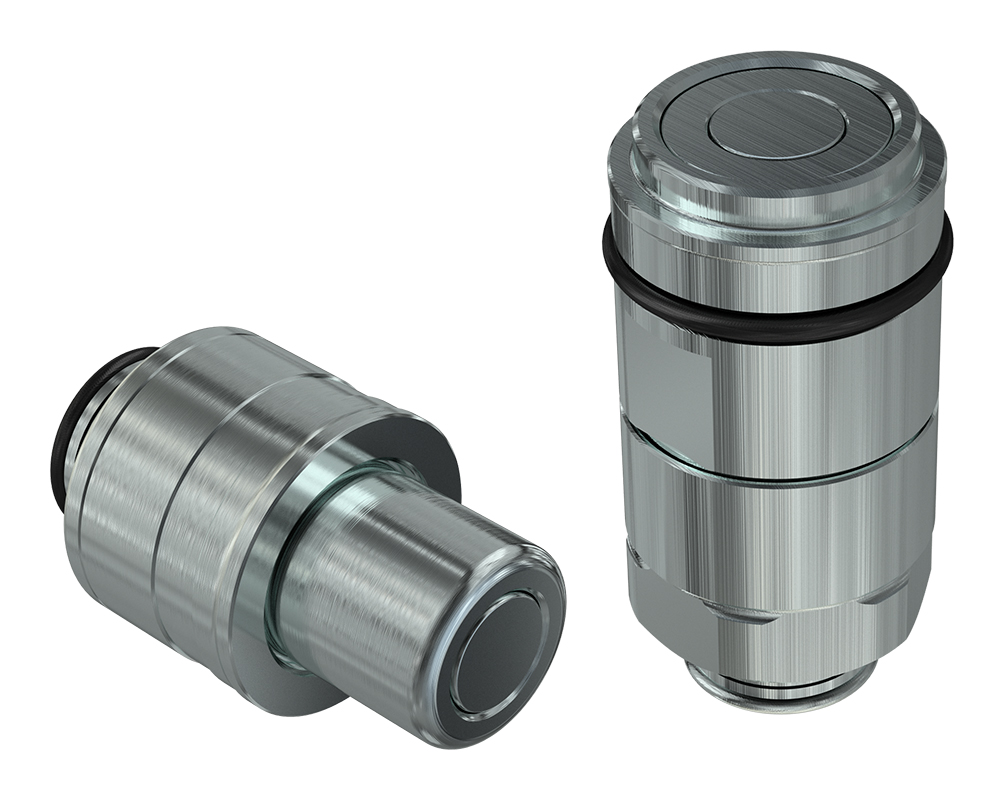

平面快速接头系列，插装阀密封，不锈钢材质

自对准平面快速接头系列，适合多路同步连接应用。在连接过程中，± 0.5 mm和± 1°（角度）以内的错位都可以自动补偿。配备不锈钢部件（AISI 316）和FKM（氟橡胶）密封件。Faster厂标产品。
应用领域
Female

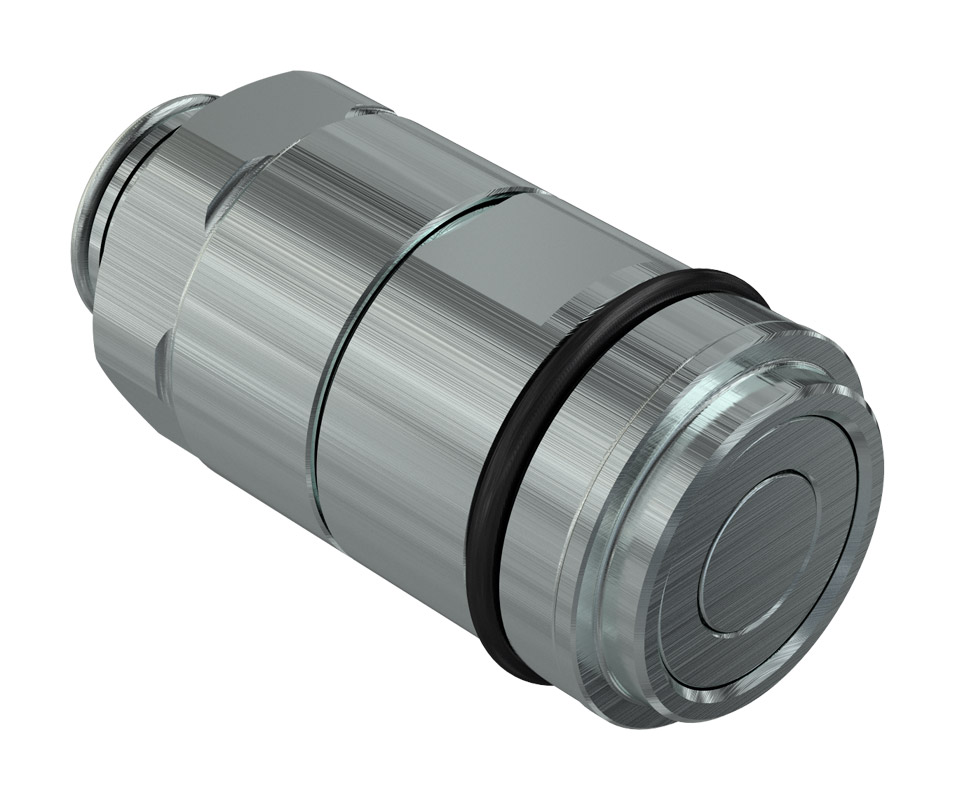

阴接头

过滤项目
单位
订货号 Thread 更多详情
10 3/8 FFC38 F 2V
Specs
Working Pressure: 25.0 25.0 MPa
Flow Rate: 23 (l/min) at 0.2 MPa
Temperature: -20°C to 200°C
Seals: FKM
Weight: 103 g
12,5 1/2 FFC12 F 2V
Specs
Working Pressure: 45.0 45.0 MPa
Flow Rate: 35 (l/min) at 0.2 MPa
Temperature: -20°C to 200°C
Seals: FKM
Weight: g
6,3 1/4 FFC14 F 2V
Specs
Working Pressure: 32.0 32.0 MPa
Flow Rate: 8 (l/min) at 0.2 MPa
Temperature: -20°C to 200°C
Seals: FKM
Weight: 60 g
Male

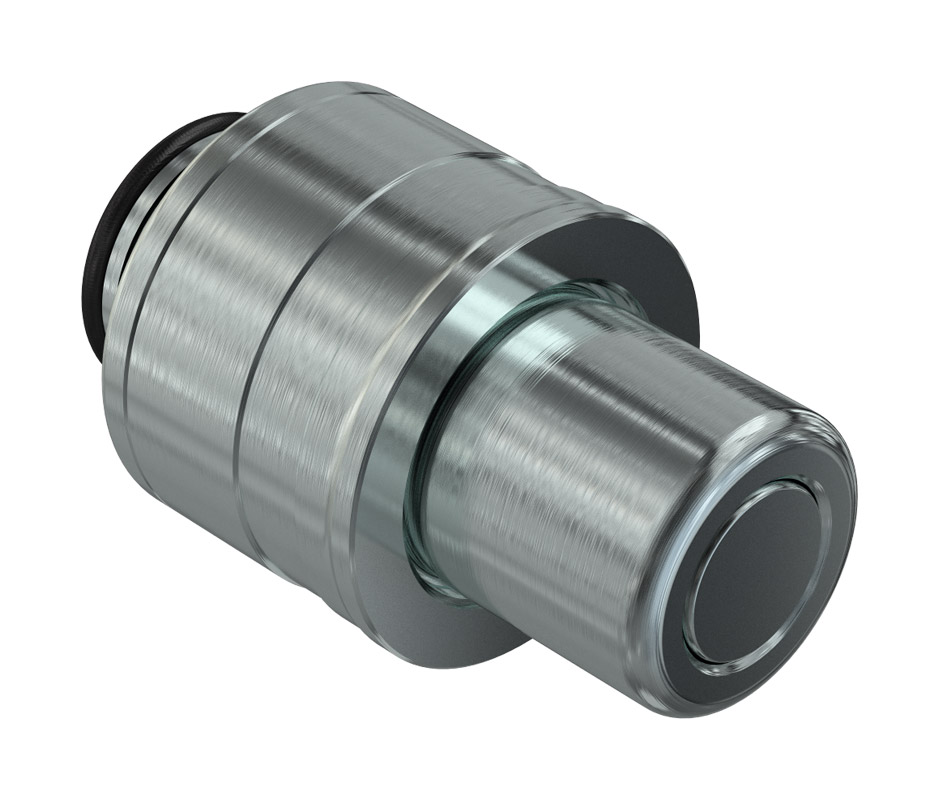

阳接头

过滤项目
单位
订货号 Thread Details
10 3/8 FFC38 M 2V
Specs
Working Pressure: 25.0 25.0 Mpa
Flow Rate: 23 (l/min) at 0.2 MPa
Temperature: -20°C to 200°C
Seals: FKM
Weight: g
12,5 1/2 FFC12 M 2V
Specs
Working Pressure: 45.0 45.0 Mpa
Flow Rate: 35 (l/min) at 0.2 MPa
Temperature: -20°C to 200°C
Seals: FKM
Weight: g
6,3 1/4 FFC14 M 2V
Specs
Working Pressure: 32.0 32.0 Mpa
Flow Rate: 8 (l/min) at 0.2 MPa
Temperature: -20°C to 200°C
Seals: FKM
Weight: 38 g
  • 防尘帽

配件与备件

防尘帽 - 阴接头
订货号 颜色 材质
Dust 防尘帽 - 阴接头
订货号 颜色 Material
技术标准
Dash Size Size (mm mm ) Working Pressure (MPa) Flow Rate (l/min) Spillage (ml) Force to connect (N) Male Burst pressure (MPa) Female Burst pressure (MPa) Male + Female Burst pressure (MPa)
3/8xx 10 25.0 23 0.006 110 90 100 100
1/2xx 12,5 45.0 35 0.006 185 140 80 180
1/4xx 6,3 32.0 8 0.002 80 150 90 130
1/8xx 3,2 25.0 2,5 0.002 80 100 100 130
1/8'xx 25.0 0.002 80 100 100 130
1/4'xx 32.0 8 0.002 80 150 90 130
3/8'xx 10 25.0 23 0.006 110 90 100 100
1/2'xx 45.0 35 0.006 185 140 80 180
Material:
不锈钢
密封件:
FKM
Working temperatures:
-20°C to 200 °C
Specifications:
Series Interchange:MARKET
Valve Type: 平面阀
Connection:Special
Disconnection: Special
Connection Under Pressure: Not Allowed

压降

图中所示的数据是指示性的，没有约束性。
(§) 1 MPa = 10 bar
零件尺寸是指定的。

2FFI stainless steel flow diagram
