产品系列
FHV

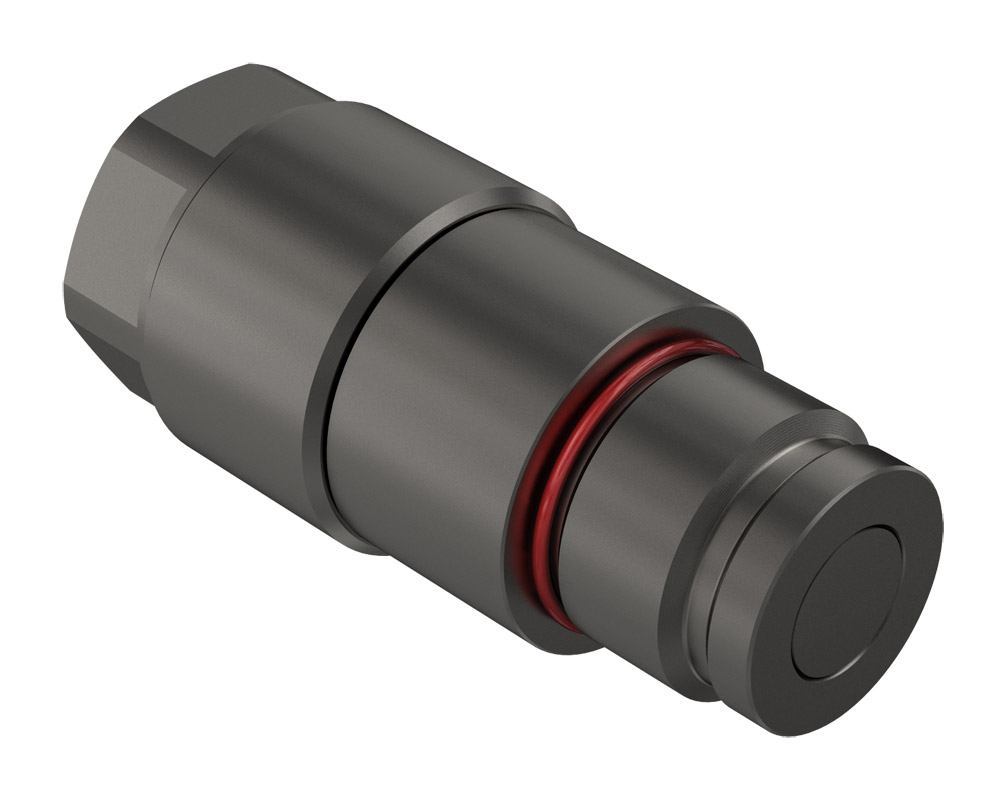

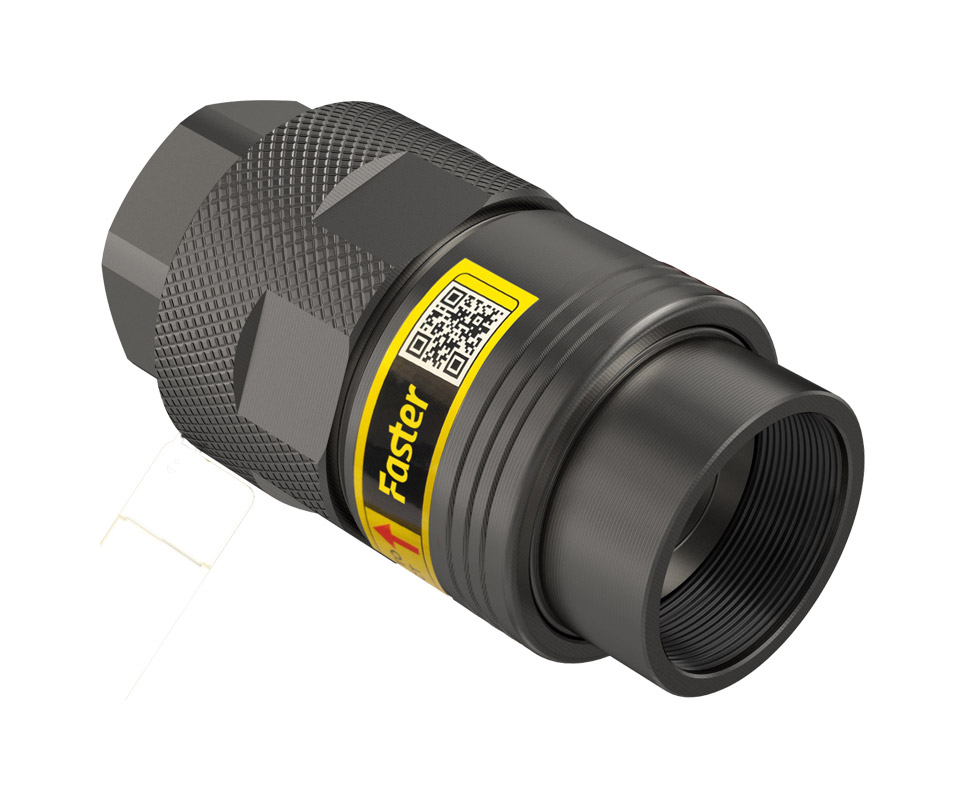

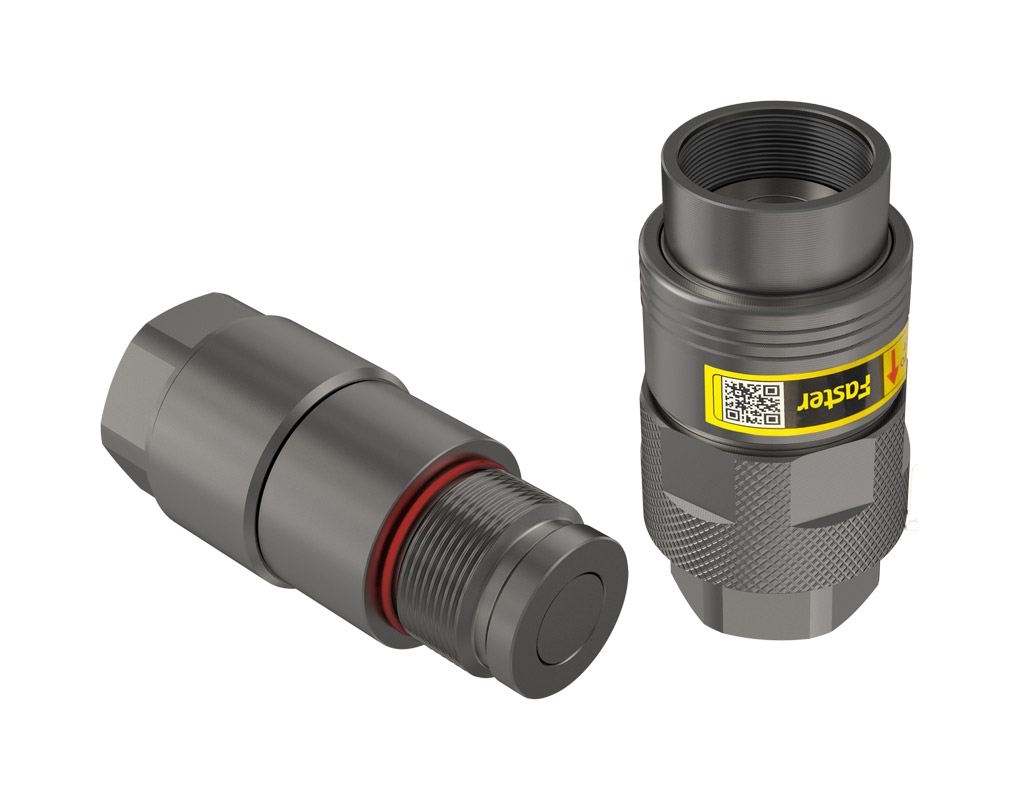

平面快速接头系列，螺纹旋紧连接
平面快速接头系列，螺纹旋紧连接，适合工程机械和重型应用。锌-镍涂层可保证卓越的耐腐蚀性。可在阳接头带残压状态（最高35 MPa）手动连接。凭借内部轴承系统，可保证连接和断开过程中不出现软管扭转。配备有一个安全锁筒，用于防止因振动而导致意外断开。可提供铝合金和聚氯乙烯防尘帽选项。Faster厂标产品。
应用领域
项目
适用标准
阴接头
阳接头
配件
防尘帽
阴接头
过滤项目
单位
Metric
Imperial
Size (mm)
10
10
12,5
20
20
25
25
31,5
37,5
50
Size (in)
1/2'
1-1/2'
1-1/4'
3/8
3/8'
1/2
3/4
3/4'
1
1'
1-1/4
1-1/2
2'
订货号
Thread
更多详情
Hex1
D1
20
3/4
|3/4|
FHV12 1GAS F
BSPP 1" FEMALE
Specs
Hex1:
46
1,81
D1:
64
2,52
L1:
5,1
Working Pressure:
46.0
46.0
MPa
Flow Rate:
120 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
1804 g
46
1,81
64
2,52
20
3/4
|3/4|
FHV12 34GAS F
BSPP 3/4" FEMALE
Specs
Hex1:
46
1,81
D1:
64
2,52
L1:
5,1
Working Pressure:
46.0
46.0
MPa
Flow Rate:
120 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
1660 g
46
1,81
64
2,52
20
3/4
|3/4|
FHV12 34NPT F
NPTF 3/4" FEMALE
Specs
Hex1:
46
1,81
D1:
64
2,52
L1:
5,1
Working Pressure:
46.0
46.0
MPa
Flow Rate:
120 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
1824 g
46
1,81
64
2,52
20
3/4
|3/4|
FHV12 34SAE F
Specs
Hex1:
46
1,81
D1:
64
2,52
L1:
5,1
Working Pressure:
46.0
46.0
MPa
Flow Rate:
120 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
1854 g
46
1,81
64
2,52
20
3/4
|3/4|
FHV12-71/34G F
BSPP 3/4 FEMALE ORB
Specs
Hex1:
46
1,81
D1:
64
2,52
L1:
5,1
Working Pressure:
46.0
46.0
MPa
Flow Rate:
120 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
46
1,81
64
2,52
25
1
|1|
FHV16 114GAS F
BSPP 1-1/4" FEMALE
Specs
Hex1:
55
2,17
D1:
74
2,91
L1:
138
5,43
Working Pressure:
53.0
53.0
MPa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
2470 g
55
2,17
74
2,91
25
1
|1|
FHV16 114NPT F
NPTF 1-1/4" FEMALE
Specs
Hex1:
55
2,17
D1:
74
2,91
L1:
138
5,43
Working Pressure:
53.0
53.0
MPa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
55
2,17
74
2,91
25
1
|1|
FHV16 1GAS F
BSPP 1" FEMALE
Specs
Hex1:
55
2,17
D1:
74
2,91
L1:
138
5,43
Working Pressure:
53.0
53.0
MPa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
2303 g
55
2,17
74
2,91
25
1
|1|
FHV16 1NPT F
NPTF 1" FEMALE
Specs
Hex1:
55
2,17
D1:
74
2,91
L1:
138
5,43
Working Pressure:
53.0
53.0
MPa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
2612 g
55
2,17
74
2,91
25
1
|1|
FHV16 1SAE F
1-5/16"-12 UN FEMALE ORB
Specs
Hex1:
55
2,17
D1:
74
2,91
L1:
138
5,43
Working Pressure:
53.0
53.0
MPa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
2589 g
55
2,17
74
2,91
25
1
|1|
FHV16-1/3320 F
M33x2 MALE
Specs
Hex1:
55
2,17
D1:
74
2,91
L1:
159
6,26
Working Pressure:
53.0
53.0
MPa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
55
2,17
74
2,91
25
1
|1|
FHV16-34/20 F
SAE FLANGE 1-1/4
Specs
Hex1:
55
2,17
D1:
3,72
L1:
159
6,26
Working Pressure:
53.0
53.0
MPa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
55
2,17
3,72
25
1
|1|
FHV16-44/16 F
METRIC FLANGE 1
Specs
Hex1:
55
2,17
D1:
3,2
L1:
158
6,22
Working Pressure:
53.0
53.0
MPa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
3460 g
55
2,17
3,2
25
1
|1|
FHV16-44/20 F
METRIC FLANGE 1-1/4
Specs
Hex1:
55
2,17
D1:
3,72
L1:
159
6,26
Working Pressure:
53.0
53.0
MPa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
55
2,17
3,72
25
1
|1|
FHV16-44A/20 F
METRIC FLANGE 1-1/4
Specs
Hex1:
55
2,17
D1:
3,72
L1:
158
6,22
Working Pressure:
53.0
53.0
MPa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
3678 g
55
2,17
3,72
25
1
|1|
FHV16-71/1G F
BSPP 1 FEMALE ORB
Specs
Hex1:
55
2,17
D1:
74
2,91
L1:
138
5,43
Working Pressure:
53.0
53.0
MPa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
55
2,17
74
2,91
25
1
|1|
FHV16-76/16 F
SAE FLANGE HEAD 1
Specs
Hex1:
55
2,17
D1:
74
2,91
L1:
191
7,52
Working Pressure:
53.0
53.0
MPa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
55
2,17
74
2,91
25
1
|1|
FHV16-76/20 F
SAE FLANGE HEAD 1-1/4
Specs
Hex1:
55
2,17
D1:
74
2,91
L1:
198
7,8
Working Pressure:
53.0
53.0
MPa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
55
2,17
74
2,91
10
3/8
|3/8|
FHV06 38GAS F
BSPP 3/8" FEMALE
Specs
Hex1:
34
1,34
D1:
48
1,89
L1:
4,01
Working Pressure:
53.0
53.0
MPa
Flow Rate:
32 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
34
1,34
48
1,89
10
3/8
|3/8|
FHV06 38NPT F
NPTF 3/8" FEMALE
Specs
Hex1:
34
1,34
D1:
48
1,89
L1:
4,01
Working Pressure:
53.0
53.0
MPa
Flow Rate:
32 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
765 g
34
1,34
48
1,89
||
FHV32 2NPT F
NPTF 2" FEMALE
Specs
Hex1:
85
3,35
D1:
124
4,88
L1:
7,88
Working Pressure:
0
0
MPa
Flow Rate:
(l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
9826 g
85
3,35
124
4,88
||
FHV32-44/32 F
METRIC FLANGE 2
Specs
Hex1:
85
3,35
D1:
5,23
L1:
9,06
Working Pressure:
0
0
MPa
Flow Rate:
(l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
85
3,35
5,23
||
FHV32-76/32 F
SAE FLANGE HEAD 2
Specs
Hex1:
85
3,35
D1:
124
4,88
L1:
11,44
Working Pressure:
0
0
MPa
Flow Rate:
(l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
85
3,35
124
4,88
12,5
1/2
|1/2|
FHV08 12GAS F
BSPP 1/2" FEMALE
Specs
Hex1:
41
1,61
D1:
55
2,17
L1:
4,32
Working Pressure:
53.0
53.0
MPa
Flow Rate:
70 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
1144 g
41
1,61
55
2,17
12,5
1/2
|1/2|
FHV08 12NPT F
NPTF 1/2" FEMALE
Specs
Hex1:
41
1,61
D1:
55
2,17
L1:
4,32
Working Pressure:
53.0
53.0
MPa
Flow Rate:
70 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
1144 g
41
1,61
55
2,17
31,5
1-1/4
|1-1/4|
FHV20S 114GAS F
BSPP 1-1/4" FEMALE
Specs
Hex1:
55
2,17
D1:
74
2,91
L1:
5,78
Working Pressure:
46.0
46.0
MPa
Flow Rate:
350 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
2627 g
55
2,17
74
2,91
31,5
1-1/4
|1-1/4|
FHV20S 114NPT F
NPTF 1-1/4" FEMALE
Specs
Hex1:
55
2,17
D1:
74
2,91
L1:
5,78
Working Pressure:
46.0
46.0
MPa
Flow Rate:
350 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
2644 g
55
2,17
74
2,91
31,5
1-1/4
|1-1/4|
FHV20S-71/114GF
BSPP 1-1/4 FEMALE ORB
Specs
Hex1:
55
2,17
D1:
74
2,91
L1:
5,78
Working Pressure:
46.0
46.0
MPa
Flow Rate:
350 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
2008 g
55
2,17
74
2,91
31,5
1-1/4
|1-1/4|
FHV20S-71/1G F
BSPP 1 FEMALE ORB
Specs
Hex1:
55
2,17
D1:
74
2,91
L1:
5,78
Working Pressure:
46.0
46.0
MPa
Flow Rate:
350 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
55
2,17
74
2,91
37,5
1-1/2
|1-1/2|
FHV24 112GAS F
BSPP 1-1/2" FEMALE
Specs
Hex1:
65
2,56
D1:
100
3,94
L1:
6,71
Working Pressure:
46.0
46.0
MPa
Flow Rate:
420 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
5386 g
65
2,56
100
3,94
37,5
1-1/2
|1-1/2|
FHV24 112NPT F
NPTF 1-1/2" FEMALE
Specs
Hex1:
65
2,56
D1:
100
3,94
L1:
6,71
Working Pressure:
46.0
46.0
MPa
Flow Rate:
420 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
4904 g
65
2,56
100
3,94
37,5
1-1/2
|1-1/2|
FHV24 114SAE F
1-5/8"-12 UN FEMALE ORB
Specs
Hex1:
65
2,56
D1:
100
3,94
L1:
6,71
Working Pressure:
46.0
46.0
MPa
Flow Rate:
420 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
65
2,56
100
3,94
37,5
1-1/2
|1-1/2|
FHV24-34/20 F
SAE FLANGE 1-1/4
Specs
Hex1:
65
2,56
D1:
3,72
L1:
181
7,13
Working Pressure:
46.0
46.0
MPa
Flow Rate:
420 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
65
2,56
3,72
37,5
1-1/2
|1-1/2|
FHV24-44/24 F
METRIC FLANGE 1-1/2
Specs
Hex1:
65
2,56
D1:
4,46
L1:
192
7,56
Working Pressure:
46.0
46.0
MPa
Flow Rate:
420 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
7745 g
65
2,56
4,46
37,5
1-1/2
|1-1/2|
FHV24-44A/20 F
METRIC FLANGE 1-1/4
Specs
Hex1:
65
2,56
D1:
3,72
L1:
181
7,13
Working Pressure:
46.0
46.0
MPa
Flow Rate:
420 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
65
2,56
3,72
37,5
1-1/2
|1-1/2|
FHV24-76/20 F
SAE FLANGE HEAD 1-1/4
Specs
Hex1:
65
2,56
D1:
100
3,94
L1:
226
8,9
Working Pressure:
46.0
46.0
MPa
Flow Rate:
420 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
65
2,56
100
3,94
37,5
1-1/2
|1-1/2|
FHV24-76/24 F
SAE FLANGE HEAD 1-1/2
Specs
Hex1:
65
2,56
D1:
100
3,94
L1:
236
9,29
Working Pressure:
46.0
46.0
MPa
Flow Rate:
420 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
65
2,56
100
3,94
阳接头
过滤项目
单位
Metric
Imperial
Size (mm)
10
10
12,5
20
20
25
25
31,5
37,5
50
Size (in)
1/2'
1-1/2'
1-1/4'
3/8
3/8'
1/2
3/4
3/4'
1
1'
1-1/4
1-1/2
2'
订货号
Thread
Details
Hex1
D1
20
3/4
|3/4|
FHV12 1GAS M
BSPP 1" FEMALE
Specs
Working Pressure:
46.0
46.0
Mpa
Flow Rate:
120 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
1174 g
46
1,81
2,15
20
3/4
|3/4|
FHV12 34GAS M
BSPP 3/4" FEMALE
Specs
Working Pressure:
46.0
46.0
Mpa
Flow Rate:
120 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
1180 g
46
1,81
2,15
20
3/4
|3/4|
FHV12 34NPT M
NPTF 3/4" FEMALE
Specs
Working Pressure:
46.0
46.0
Mpa
Flow Rate:
120 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
1209 g
46
1,81
2,15
20
3/4
|3/4|
FHV12 34SAE M
1-1/16"-12 UN FEMALE ORB
Specs
Working Pressure:
46.0
46.0
Mpa
Flow Rate:
120 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
1192 g
46
1,81
2,15
20
3/4
|3/4|
FHV12-71/34G M
BSPP 3/4 FEMALE ORB
Specs
Working Pressure:
46.0
46.0
Mpa
Flow Rate:
120 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
46
1,81
2,15
25
1
|1|
FHV16 114GAS M
BSPP 1-1/4" FEMALE
Specs
Working Pressure:
53.0
53.0
Mpa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
55
2,17
64
2,52
25
1
|1|
FHV16 114NPT M
Specs
Working Pressure:
53.0
53.0
Mpa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
55
2,17
64
2,52
25
1
|1|
FHV16 1GAS M
BSPP 1" FEMALE
Specs
Working Pressure:
53.0
53.0
Mpa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
55
2,17
64
2,52
25
1
|1|
FHV16 1NPT M
NPTF 1" FEMALE
Specs
Working Pressure:
53.0
53.0
Mpa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
2075 g
55
2,17
64
2,52
25
1
|1|
FHV16 1SAE M
1-5/16"-12 UN FEMALE ORB
Specs
Working Pressure:
53.0
53.0
Mpa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
2066 g
55
2,17
64
2,52
25
1
|1|
FHV16-11/1S M
1-7/16"-12 UN MALE ORFS
Specs
Working Pressure:
53.0
53.0
Mpa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
55
2,17
64
2,52
25
1
|1|
FHV16-34/20 M
SAE FLANGE 1-1/4
Specs
Working Pressure:
53.0
53.0
Mpa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
55
2,17
3,72
25
1
|1|
FHV16-44/16 M
METRIC FLANGE 1
Specs
Working Pressure:
53.0
53.0
Mpa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
2677 g
55
2,17
3,2
25
1
|1|
FHV16-44/20 M
METRIC FLANGE 1-1/4
Specs
Working Pressure:
53.0
53.0
Mpa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
55
2,17
3,72
25
1
|1|
FHV16-44A/20 M
METRIC FLANGE 1-1/4
Specs
Working Pressure:
53.0
53.0
Mpa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
3000 g
55
2,17
3,72
25
1
|1|
FHV16-71/1G M
BSPP 1 FEMALE ORB
Specs
Working Pressure:
53.0
53.0
Mpa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
55
2,17
64
2,52
25
1
|1|
FHV16-76/16 M
SAE FLANGE HEAD 1
Specs
Working Pressure:
53.0
53.0
Mpa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
2332 g
55
2,17
64
2,52
25
1
|1|
FHV16-76/20 M
SAE FLANGE HEAD 1-1/4
Specs
Working Pressure:
53.0
53.0
Mpa
Flow Rate:
200 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
55
2,17
64
2,52
10
3/8
|3/8|
FHV06 38GAS M
BSPP 3/8" FEMALE
Specs
Working Pressure:
53.0
53.0
Mpa
Flow Rate:
32 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
36
1,42
33
1,3
10
3/8
|3/8|
FHV06 38NPT M
NPTF 3/8" FEMALE
Specs
Working Pressure:
53.0
53.0
Mpa
Flow Rate:
32 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
354 g
36
1,42
33
1,3
||
FHV32 2NPT M
NPTF 2" FEMALE
Specs
Working Pressure:
0
0
Mpa
Flow Rate:
(l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
85
3,35
115
4,53
||
FHV32-44/32 M
METRIC FLANGE 2
Specs
Working Pressure:
0
0
Mpa
Flow Rate:
(l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
85
3,35
5,23
||
FHV32-76/32 M
SAE FLANGE HEAD 2
Specs
Working Pressure:
0
0
Mpa
Flow Rate:
(l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
85
3,35
115
4,53
12,5
1/2
|1/2|
FHV08 12GAS M
BSPP 1/2" FEMALE
Specs
Working Pressure:
53.0
53.0
Mpa
Flow Rate:
70 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
752 g
36
1,42
1,75
12,5
1/2
|1/2|
FHV08 12NPT M
NPTF 1/2" FEMALE
Specs
Working Pressure:
53.0
53.0
Mpa
Flow Rate:
70 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
752 g
36
1,42
1,75
31,5
1-1/4
|1-1/4|
FHV20S 114GAS M
BSPP 1-1/4" FEMALE
Specs
Working Pressure:
46.0
46.0
Mpa
Flow Rate:
350 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
2357 g
55
2,17
68
2,68
31,5
1-1/4
|1-1/4|
FHV20S 114NPT M
NPTF 1-1/4" FEMALE
Specs
Working Pressure:
46.0
46.0
Mpa
Flow Rate:
350 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
55
2,17
68
2,68
31,5
1-1/4
|1-1/4|
FHV20S-71/114GM
BSPP 1-1/4 FEMALE ORB
Specs
Working Pressure:
46.0
46.0
Mpa
Flow Rate:
350 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
55
2,17
68
2,68
31,5
1-1/4
|1-1/4|
FHV20S-71/1G M
BSPP 1 FEMALE ORB
Specs
Working Pressure:
46.0
46.0
Mpa
Flow Rate:
350 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
55
2,17
68
2,68
37,5
1-1/2
|1-1/2|
FHV24 112GAS M
BSPP 1-1/2" FEMALE
Specs
Working Pressure:
46.0
46.0
Mpa
Flow Rate:
420 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
5259 g
75
2,95
3,33
37,5
1-1/2
|1-1/2|
FHV24 112NPT M
NPTF 1-1/2" FEMALE
Specs
Working Pressure:
46.0
46.0
Mpa
Flow Rate:
420 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
75
2,95
3,33
37,5
1-1/2
|1-1/2|
FHV24 114SAE M
1-5/8"-12 UN FEMALE ORB
Specs
Working Pressure:
46.0
46.0
Mpa
Flow Rate:
420 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
75
2,95
3,33
37,5
1-1/2
|1-1/2|
FHV24-34/20 M
SAE FLANGE 1-1/4
Specs
Working Pressure:
46.0
46.0
Mpa
Flow Rate:
420 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
75
2,95
3,72
37,5
1-1/2
|1-1/2|
FHV24-44/24 M
METRIC FLANGE 1-1/2
Specs
Working Pressure:
46.0
46.0
Mpa
Flow Rate:
420 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
75
2,95
4,46
37,5
1-1/2
|1-1/2|
FHV24-44A/20 M
METRIC FLANGE 1-1/4
Specs
Working Pressure:
46.0
46.0
Mpa
Flow Rate:
420 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
5519 g
75
2,95
3,72
37,5
1-1/2
|1-1/2|
FHV24-76/20 M
SAE FLANGE HEAD 1-1/4
Specs
Working Pressure:
46.0
46.0
Mpa
Flow Rate:
420 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
75
2,95
3,33
37,5
1-1/2
|1-1/2|
FHV24-76/24 M
SAE FLANGE HEAD 1-1/2
Specs
Working Pressure:
46.0
46.0
Mpa
Flow Rate:
420 (l/min) at 0.2 MPa
Temperature:
-25°C to 100°C
Seals:
FKM;PUR
Weight:
g
75
2,95
3,33
防尘帽
配件与备件
防尘帽 - 阴接头
订货号
颜色
材质
TM FHV06 S
Metal
TM FHV08 S
Metal
TM FHV12 S
Metal
TM FHV16 S
Metal
TM FHV20 S
Metal
TM FHV24 S
Metal
TM FHV32 S
Metal
Dust 防尘帽 - 阴接头
订货号
颜色
Material
TF FHV06 S
metal
Metal
TF FHV08 S
metal
Metal
TF FHV12 S
metal
Metal
TF FHV16 S
metal
Metal
TF FHV20 S
metal
Metal
TF FHV24 S
metal
Metal
TF FHV32 S
metal
Metal
技术标准
Burst pressure (MPa)
Dash Size
Size (
mm
mm
)
Working Pressure (MPa)
Flow Rate (l/min)
Spillage (ml)
Force to connect (N)
Male
Burst pressure (MPa)
Female
Burst pressure (MPa)
Male + Female
Burst pressure (MPa)
1-1/2xx
37,5
46.0
420
0.03
0
140
140
160
1xx
25
53.0
200
0.03
0
140
140
160
3/8xx
10
53.0
32
0.01
0
140
140
160
1/2xx
12,5
53.0
70
0.01
0
140
140
160
3/4xx
20
46.0
120
0.02
0
140
140
160
1-1/4xx
31,5
46.0
350
0.03
0
140
140
160
3/8'xx
10
53.0
32
0.01
0
140
140
160
1/2'xx
53.0
70
0.01
0
140
140
160
3/4'xx
20
46.0
120
0.02
0
140
140
160
1'xx
25
53.0
200
0.03
0
140
140
160
1-1/4'xx
46.0
350
0.03
0
140
140
160
1-1/2'xx
46.0
420
0.03
0
140
140
160
2'xx
50
35.0
750
0.03
0
100
80
120
Material:
碳钢
密封件:
FKM; PUR
Working temperatures:
-20°C to 100 °C
Specifications:
Series Interchange:FASTER
Valve Type: 平面阀
Connection:Screw to Connect
Disconnection: Unscrew to Disconnect
Connection Under Pressure: Allowed Male Half up to W.P.
压降
图中所示的数据是指示性的，没有约束性。
(§) 1 MPa = 10 bar
零件尺寸是指定的。
Please wait...
This action may take few seconds
