OGVFR

螺纹旋紧连接快速接头—石油天然气应用系列，可与其他市场互换，通过BOP认证

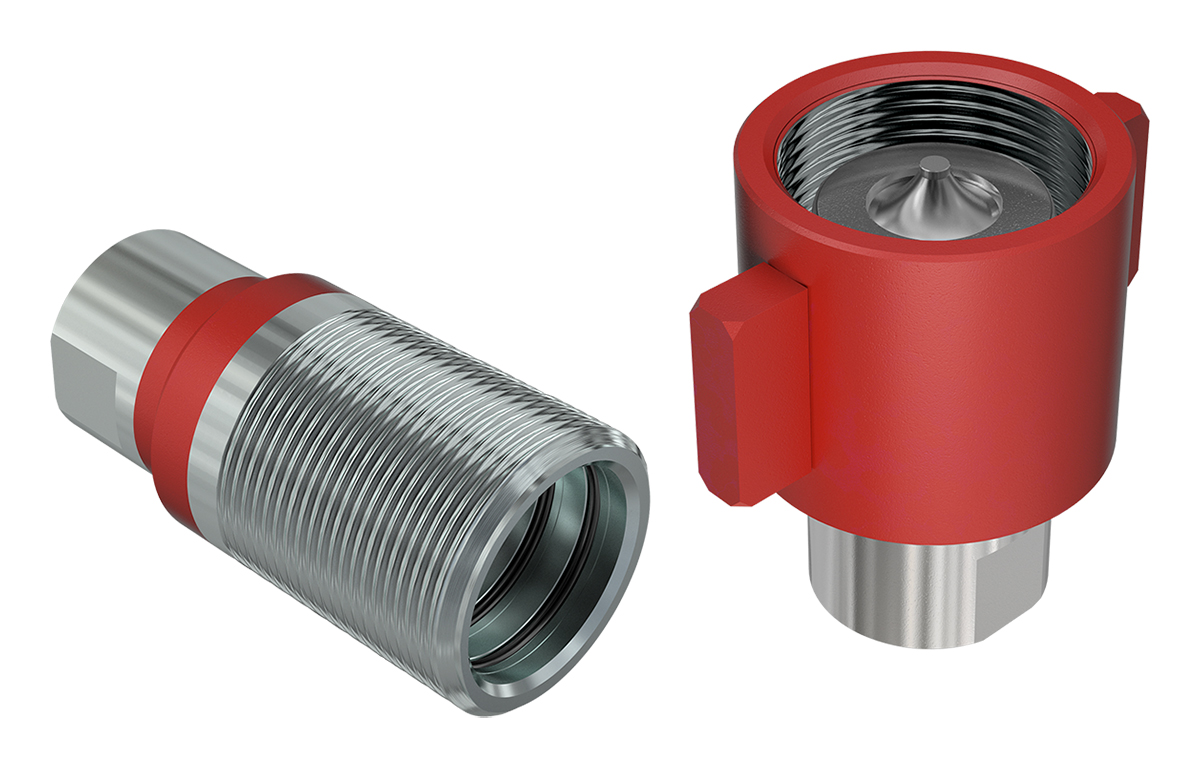

应用于石油天然气行业的螺纹连接标准快速接头。OGV系列经过使用特殊零部件和密封圈而通过了API认证，适用于防喷器(BOP)应用
应用领域
Female

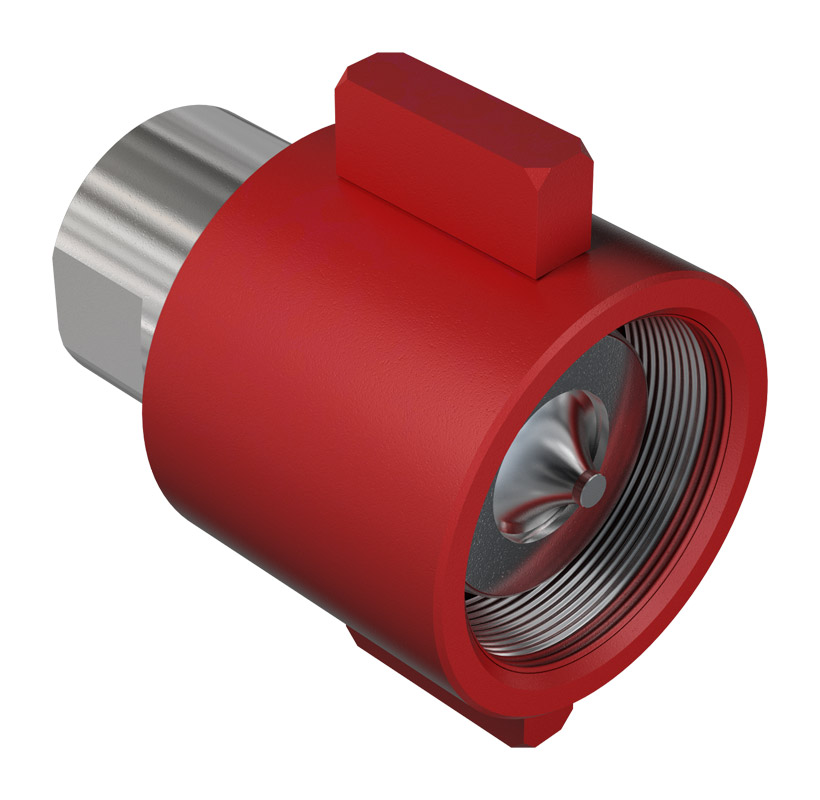

阴接头

过滤项目
单位
订货号 Thread 更多详情 Hex1 D1
20 3/4 OGVFR12 34NPS F NPSF 3/4 FEMALE
Specs
Working Pressure: 34.5 34.5 MPa
Flow Rate: 120 (l/min) at 0.2 MPa
Temperature: °C to °C
Seals: SPECIAL
Weight: g
32 1,26 65 2,56
25 1 OGVFR16 1NPS F NPSF 1 FEMALE
Specs
Working Pressure: 34.5 34.5 MPa
Flow Rate: 230 (l/min) at 0.2 MPa
Temperature: °C to °C
Seals: SPECIAL
Weight: 1287 g
41 1,61 4,15
31,5 1-1/4 OGVFR20 114NPTF NPTF 1-1/4" FEMALE
Specs
Working Pressure: 34.5 34.5 MPa
Flow Rate: 320 (l/min) at 0.2 MPa
Temperature: °C to °C
Seals: SPECIAL
Weight: g
50 1,97 4,65
Male

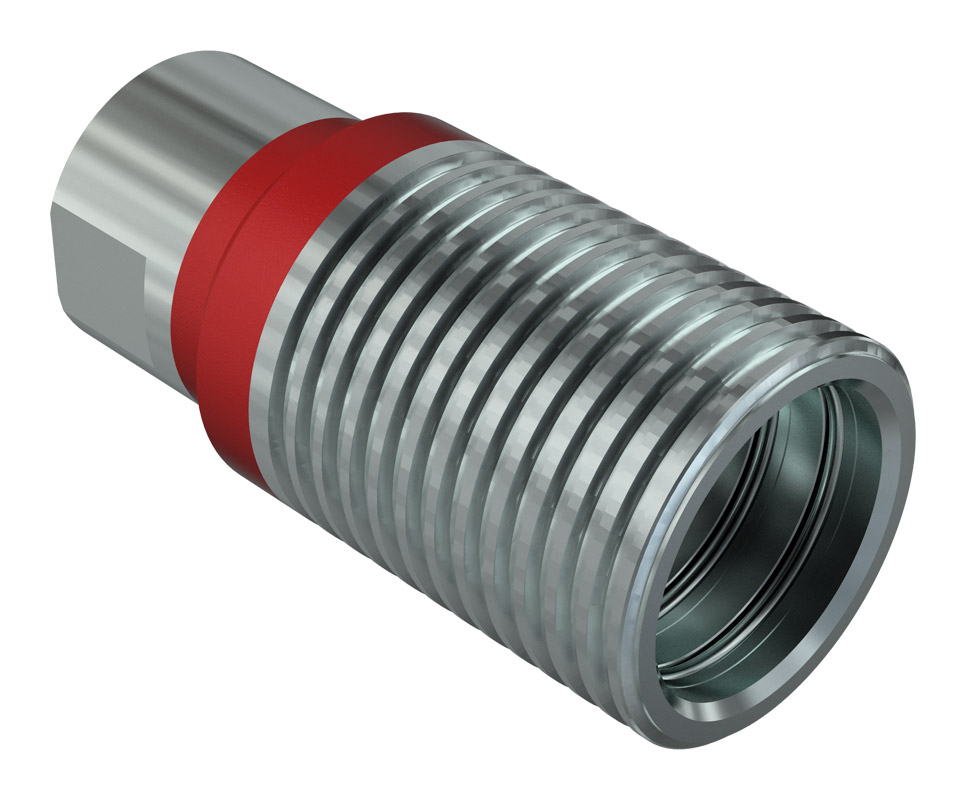

阳接头

过滤项目
单位
订货号 Thread Details Hex1 D1
20 3/4 OGVFR12 34NPS M NPSF 3/4 FEMALE
Specs
Working Pressure: 34.5 34.5 Mpa
Flow Rate: 120 (l/min) at 0.2 MPa
Temperature: °C to °C
Seals: SPECIAL
Weight: g
32 1,26 1,74
25 1 OGVFR16 1NPS M NPSF 1 FEMALE
Specs
Working Pressure: 34.5 34.5 Mpa
Flow Rate: 230 (l/min) at 0.2 MPa
Temperature: °C to °C
Seals: SPECIAL
Weight: g
41 1,61 2,25
31,5 1-1/4 OGVFR20 114NPTM NPTF 1-1/4" FEMALE
Specs
Working Pressure: 34.5 34.5 Mpa
Flow Rate: 320 (l/min) at 0.2 MPa
Temperature: °C to °C
Seals: SPECIAL
Weight: g
50 1,97 2,62
  • 防尘帽

配件与备件

防尘帽 - 阴接头
订货号 颜色 材质
TM OGV12 S
metal
Metal
TM OGV16 S
metal
Metal
TM OGV20 S
metal
Metal
Dust 防尘帽 - 阴接头
订货号 颜色 Material
TF OGV12 S
metal
Metal
TF OGV16 S
metal
Metal
TF OGV20 S
metal
Metal
技术标准
Dash Size Size (mm mm ) Working Pressure (MPa) Flow Rate (l/min) Spillage (ml) Force to connect (N) Male Burst pressure (MPa) Female Burst pressure (MPa) Male + Female Burst pressure (MPa)
3/4xx 20 34.5 120 8 168 160 165
1xx 25 34.5 230 18 165 165 172
1-1/4xx 31,5 34.5 320 21 180 200 178
Material:
碳钢
密封件:
SPECIAL
Working temperatures:
°C to °C
Specifications:
Series Interchange:MARKET
Valve Type: 锥面阀
Connection:Screw to Connect
Disconnection: Unscrew to Disconnect
Connection Under Pressure: Allowed Residual

压降

图中所示的数据是指示性的，没有约束性。
(§) 1 MPa = 10 bar
零件尺寸是指定的。

2FFI stainless steel flow diagram
