产品系列

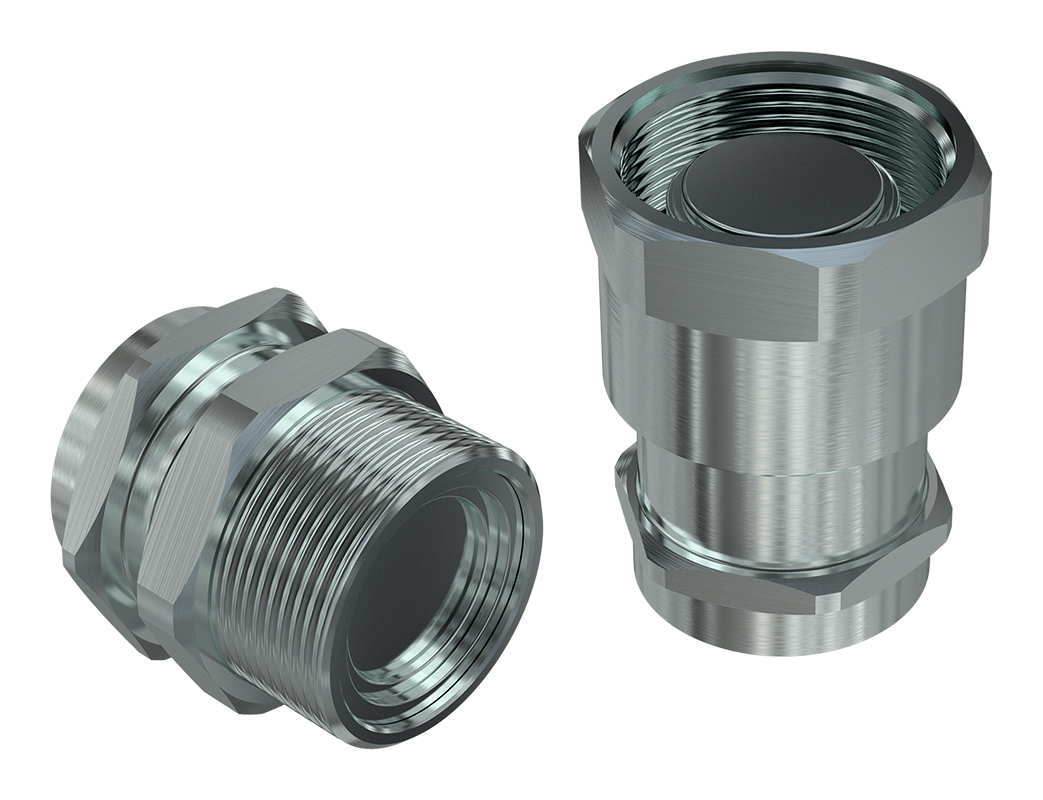

RFLS - RFS

快速接头—空调制冷应用系列，集成安全锁筒

RFLS螺纹连接快速接头降低了套筒的摩擦和连接力，并且集成了安全锁筒防止意外断开。与RFS阳接头连接，与FASTER产品互换
应用领域
Female

阴接头

过滤项目
单位
订货号 Thread 更多详情 Hex1 D1 L1
RFLS 06 F 5 N
Specs
Working Pressure: 0 0 MPa
Flow Rate: (l/min) at 0.2 MPa
Temperature: -40°C to 120°C
Seals: CR
Weight: 132 g
22 0,87 30 1,18 1,73
RFLS 06 F N M18x1,5 FEMALE ORB
Specs
Working Pressure: 0 0 MPa
Flow Rate: (l/min) at 0.2 MPa
Temperature: -40°C to 120°C
Seals: CR
Weight: g
22 0,87 30 1,18 1,73
RFLS 06 F5N AL
Specs
Working Pressure: 0 0 MPa
Flow Rate: (l/min) at 0.2 MPa
Temperature: -40°C to 120°C
Seals: CR
Weight: g
22 0,87 30 1,18 1,73
RFLS 12 F N 1-1/4" -18 UNEF ORB FEMALE
Specs
Working Pressure: 0 0 MPa
Flow Rate: (l/min) at 0.2 MPa
Temperature: -40°C to 120°C
Seals: CR
Weight: g
36 1,42 48 1,89 2,5
RFLS 08 F N 7/8" -20 UNEF ORB FEMALE
Specs
Working Pressure: 0 0 MPa
Flow Rate: (l/min) at 0.2 MPa
Temperature: -40°C to 120°C
Seals: CR
Weight: 215 g
27 1,06 37 1,46 2,19
RFLS 04 F N 1/2" -20 UNF FEMALE ORB
Specs
Working Pressure: 0 0 MPa
Flow Rate: (l/min) at 0.2 MPa
Temperature: -40°C to 120°C
Seals: CR
Weight: g
19 0,75 25 0,98 38 1,5
Male

阳接头

过滤项目
单位
订货号 Thread Details Hex1 D1 L1
RFS 06 M H
Specs
Working Pressure: 0 0 Mpa
Flow Rate: (l/min) at 0.2 MPa
Temperature: -25°C to 140°C
Seals: HNBR
Weight: g
22 0,87 25 0,98 1,24
RFS 06 M N M18x1,5 FEMALE ORB
Specs
Working Pressure: 0 0 Mpa
Flow Rate: (l/min) at 0.2 MPa
Temperature: -40°C to 120°C
Seals: CR
Weight: g
22 0,87 25 0,98 1,24
RFS 12 M N 1-1/4" -18 UNEF ORB FEMALE
Specs
Working Pressure: 0 0 Mpa
Flow Rate: (l/min) at 0.2 MPa
Temperature: -40°C to 120°C
Seals: CR
Weight: g
41 1,61 50 1,97 1,83
RFS 08 M N 7/8" -20 UNEF ORB FEMALE
Specs
Working Pressure: 0 0 Mpa
Flow Rate: (l/min) at 0.2 MPa
Temperature: -40°C to 120°C
Seals: CR
Weight: g
32 1,26 38 1,5 1,63
RFS 04 M DE N
Specs
Working Pressure: 0 0 Mpa
Flow Rate: (l/min) at 0.2 MPa
Temperature: -40°C to 120°C
Seals: CR
Weight: 28 g
19 0,75 21 0,83 29 1,14
RFS 04 M N 1/2" -20 UNF FEMALE ORB
Specs
Working Pressure: 0 0 Mpa
Flow Rate: (l/min) at 0.2 MPa
Temperature: -40°C to 120°C
Seals: CR
Weight: g
19 0,75 21 0,83 29 1,14
  • 防尘帽

配件与备件

防尘帽 - 阴接头
订货号 颜色 材质
TMRFLS04 N
metal
Metal
TMRFLS06 N
metal
Metal
TMRFLS08 N
metal
Metal
Dust 防尘帽 - 阴接头
订货号 颜色 Material
TFRFS04 N
metal
Metal
TFRFS06 N
metal
Metal
TFRFS08 N
metal
Metal
技术标准
Dash Size Size (mm mm ) Working Pressure (MPa) Flow Rate (l/min) Spillage (ml) Force to connect (N) Male Burst pressure (MPa) Female Burst pressure (MPa) Male + Female Burst pressure (MPa)
3/8'xx 10 6.0 24 19 70
1/2'xx 5.0 55 15 55
3/4'xx 20 7.0 55 21 19
Material:
黄铜; 碳钢
密封件:
CR
Working temperatures:
-40°C to 120 °C
Specifications:
Series Interchange:FASTER
Valve Type: 平面阀
Connection:Screw to Connect
Disconnection: Unscrew to Disconnect
Connection Under Pressure: Allowed Residual

压降

图中所示的数据是指示性的，没有约束性。
(§) 1 MPa = 10 bar
零件尺寸是指定的。
