产品系列
VVS

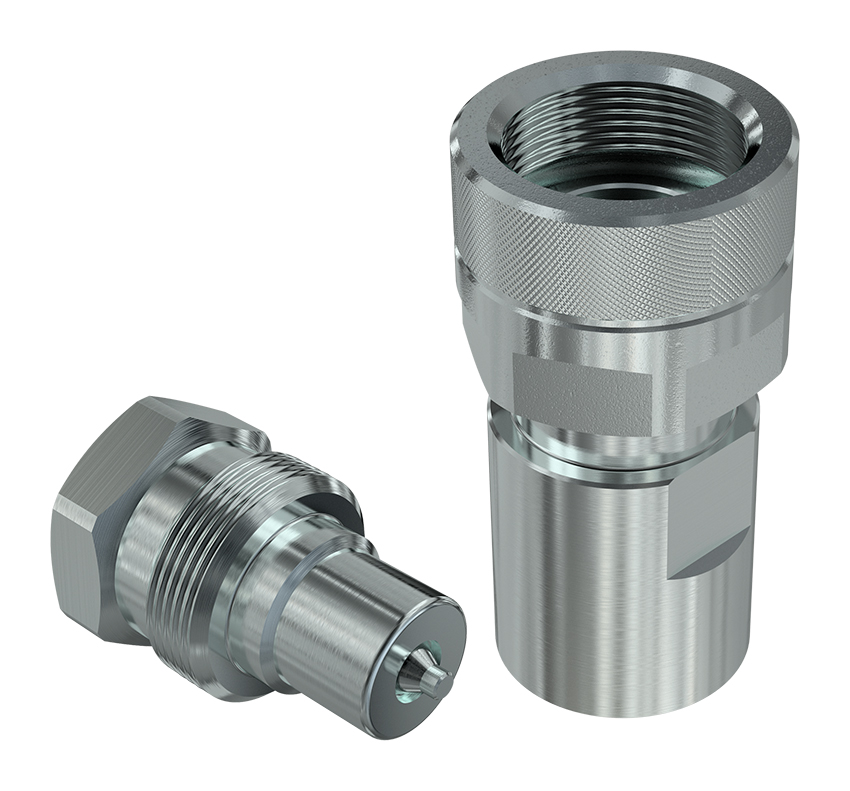

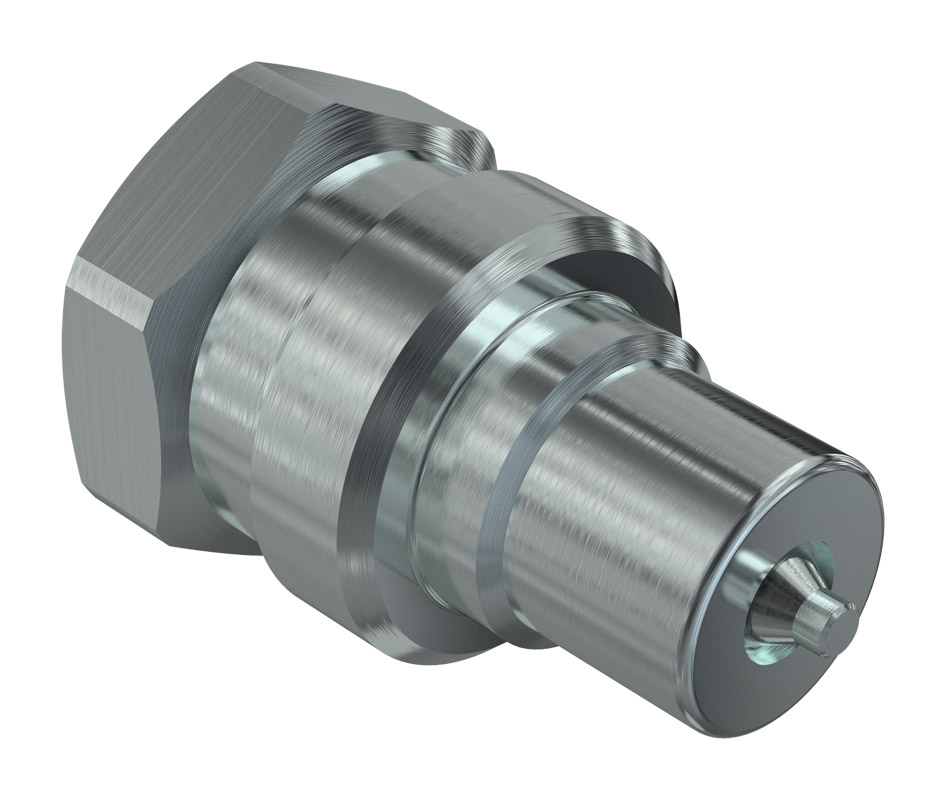

高压螺纹旋紧连接快速接头系列，Faster厂标产品
螺纹连接快速接头一般是应用于高压并且脉冲较大的工况。高压应用内部零件保证了最大的安全系数和可靠性。与Faster VV系列产品互换。
应用领域
项目
适用标准
阴接头
阳接头
配件
防尘帽
阴接头
过滤项目
单位
Metric
Imperial
Size (mm)
10
10
12,5
20
20
25
25
31,5
37,5
50
50
6,3
Size (in)
1/2'
1/4'
1-1/2'
1-1/4'
3/8
3/8'
1/2
3/4
3/4'
1
1'
1-1/4
1-1/2
2
2'
1/4
订货号
Thread
更多详情
Hex1
D1
L1
50
2
|2|
VVS 2 GAS F
BSPP 2" FEMALE
Specs
Hex1:
100
3,94
D1:
129
5,08
L1:
206
8,11
Working Pressure:
35.0
35.0
MPa
Flow Rate:
1000 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
100
3,94
129
5,08
206
8,11
50
2
|2|
VVS 2 NPT F
NPTF 2" FEMALE
Specs
Hex1:
100
3,94
D1:
129
5,08
L1:
207
8,15
Working Pressure:
35.0
35.0
MPa
Flow Rate:
1000 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
100
3,94
129
5,08
207
8,15
25
1
|1|
VVS 1 GAS F
BSPP 1" FEMALE
Specs
Hex1:
50
1,97
D1:
60
2,36
L1:
124
4,88
Working Pressure:
63.0
63.0
MPa
Flow Rate:
100 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
50
1,97
60
2,36
124
4,88
25
1
|1|
VVS 1 NPT F
NPTF 1" FEMALE
Specs
Hex1:
50
1,97
D1:
60
2,36
L1:
124
4,88
Working Pressure:
63.0
63.0
MPa
Flow Rate:
100 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
50
1,97
60
2,36
124
4,88
20
3/4
|3/4|
VVS 34 GAS F
BSPP 3/4" FEMALE
Specs
Hex1:
41
1,61
D1:
55
2,17
L1:
106
4,17
Working Pressure:
70.0
70.0
MPa
Flow Rate:
55 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
41
1,61
55
2,17
106
4,17
20
3/4
|3/4|
VVS 34 NPT F
NPTF 3/4" FEMALE
Specs
Hex1:
41
1,61
D1:
55
2,17
L1:
106
4,17
Working Pressure:
70.0
70.0
MPa
Flow Rate:
55 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
41
1,61
55
2,17
106
4,17
10
3/8
|3/8|
VVS 38 GAS F
BSPP 3/8" FEMALE
Specs
Hex1:
30
1,18
D1:
40
1,57
L1:
76
2,99
Working Pressure:
80.0
80.0
MPa
Flow Rate:
18 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
30
1,18
40
1,57
76
2,99
10
3/8
|3/8|
VVS 38 NPT F
NPTF 3/8" FEMALE
Specs
Hex1:
30
1,18
D1:
40
1,57
L1:
76
2,99
Working Pressure:
80.0
80.0
MPa
Flow Rate:
18 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
30
1,18
40
1,57
76
2,99
12,5
1/2
|1/2|
VVS 12 GAS F
BSPP 1/2" FEMALE
Specs
Hex1:
34
1,34
D1:
45
1,77
L1:
87
3,43
Working Pressure:
70.0
70.0
MPa
Flow Rate:
40 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
34
1,34
45
1,77
87
3,43
12,5
1/2
|1/2|
VVS 12 NPT F
NPTF 1/2" FEMALE
Specs
Hex1:
34
1,34
D1:
45
1,77
L1:
87
3,43
Working Pressure:
70.0
70.0
MPa
Flow Rate:
40 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
34
1,34
45
1,77
87
3,43
31,5
1-1/4
|1-1/4|
VVS114 GAS F
BSPP 1-1/4" FEMALE
Specs
Hex1:
65
2,56
D1:
80
3,15
L1:
152
5,98
Working Pressure:
60.0
60.0
MPa
Flow Rate:
140 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
65
2,56
80
3,15
152
5,98
31,5
1-1/4
|1-1/4|
VVS114 NPT F
NPTF 1-1/4" FEMALE
Specs
Hex1:
65
2,56
D1:
80
3,15
L1:
152
5,98
Working Pressure:
60.0
60.0
MPa
Flow Rate:
140 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
65
2,56
80
3,15
152
5,98
37,5
1-1/2
|1-1/2|
VVS112 GAS F
BSPP 1-1/2" FEMALE
Specs
Hex1:
75
2,95
D1:
98
3,86
L1:
172
6,77
Working Pressure:
40.0
40.0
MPa
Flow Rate:
300 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
75
2,95
98
3,86
172
6,77
37,5
1-1/2
|1-1/2|
VVS112 NPT F
NPTF 1-1/2" FEMALE
Specs
Hex1:
75
2,95
D1:
98
3,86
L1:
172
6,77
Working Pressure:
40.0
40.0
MPa
Flow Rate:
300 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
75
2,95
98
3,86
172
6,77
6,3
1/4
|1/4|
VVS 14 GAS F
BSPP 1/4" FEMALE
Specs
Hex1:
22
0,87
D1:
30
1,18
L1:
68
2,68
Working Pressure:
80.0
80.0
MPa
Flow Rate:
8 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
22
0,87
30
1,18
68
2,68
6,3
1/4
|1/4|
VVS 14 NPT F
NPTF 1/4" FEMALE
Specs
Hex1:
22
0,87
D1:
30
1,18
L1:
68
2,68
Working Pressure:
80.0
80.0
MPa
Flow Rate:
8 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
22
0,87
30
1,18
68
2,68
阳接头
过滤项目
单位
Metric
Imperial
Size (mm)
10
10
12,5
20
20
25
25
31,5
37,5
50
50
6,3
Size (in)
1/2'
1/4'
1-1/2'
1-1/4'
3/8
3/8'
1/2
3/4
3/4'
1
1'
1-1/4
1-1/2
2
2'
1/4
订货号
Thread
Details
Hex1
D1
L1
50
2
|2|
VVS 2 GAS M
BSPP 2" FEMALE
Specs
Working Pressure:
35.0
35.0
Mpa
Flow Rate:
1000 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
110
4,33
115
4,53
118
4,65
50
2
|2|
VVS 2 NPT M
NPTF 2" FEMALE
Specs
Working Pressure:
35.0
35.0
Mpa
Flow Rate:
1000 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
110
4,33
115
4,53
118
4,65
25
1
|1|
VVS 1 GAS M
BSPP 1" FEMALE
Specs
Working Pressure:
63.0
63.0
Mpa
Flow Rate:
100 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
50
1,97
55
2,17
72
2,83
25
1
|1|
VVS 1 NPT M
NPTF 1" FEMALE
Specs
Working Pressure:
63.0
63.0
Mpa
Flow Rate:
100 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
50
1,97
55
2,17
72
2,83
20
3/4
|3/4|
VVS 34 GAS M
BSPP 3/4" FEMALE
Specs
Working Pressure:
70.0
70.0
Mpa
Flow Rate:
55 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
46
1,81
50
1,97
63
2,48
20
3/4
|3/4|
VVS 34 NPT M
NPTF 3/4" FEMALE
Specs
Working Pressure:
70.0
70.0
Mpa
Flow Rate:
55 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
45
1,77
50
1,97
63
2,48
10
3/8
|3/8|
VVS 38 GAS M
BSPP 3/8" FEMALE
Specs
Working Pressure:
80.0
80.0
Mpa
Flow Rate:
18 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
30
1,18
35
1,38
48
1,89
10
3/8
|3/8|
VVS 38 NPT M
NPTF 3/8" FEMALE
Specs
Working Pressure:
80.0
80.0
Mpa
Flow Rate:
18 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
30
1,18
35
1,38
48
1,89
12,5
1/2
|1/2|
VVS 12 GAS M
BSPP 1/2" FEMALE
Specs
Working Pressure:
70.0
70.0
Mpa
Flow Rate:
40 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
34
1,34
38
1,5
53
2,09
12,5
1/2
|1/2|
VVS 12 NPT M
NPTF 1/2" FEMALE
Specs
Working Pressure:
70.0
70.0
Mpa
Flow Rate:
40 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
34
1,34
38
1,5
53
2,09
31,5
1-1/4
|1-1/4|
VVS114 GAS M
BSPP 1-1/4" FEMALE
Specs
Working Pressure:
60.0
60.0
Mpa
Flow Rate:
140 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
1054 g
65
2,56
70
2,76
86
3,39
31,5
1-1/4
|1-1/4|
VVS114 NPT M
NPTF 1-1/4" FEMALE
Specs
Working Pressure:
60.0
60.0
Mpa
Flow Rate:
140 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
1054 g
65
2,56
70
2,76
86
3,39
37,5
1-1/2
|1-1/2|
VVS112 GAS M
BSPP 1-1/2" FEMALE
Specs
Working Pressure:
40.0
40.0
Mpa
Flow Rate:
300 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
80
3,15
84
3,31
95
3,74
37,5
1-1/2
|1-1/2|
VVS112 NPT M
NPTF 1-1/2" FEMALE
Specs
Working Pressure:
40.0
40.0
Mpa
Flow Rate:
300 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
80
3,15
84
3,31
95
3,74
6,3
1/4
|1/4|
VVS 14 GAS M
BSPP 1/4" FEMALE
Specs
Working Pressure:
80.0
80.0
Mpa
Flow Rate:
8 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
25
0,98
28
1,1
43
1,69
6,3
1/4
|1/4|
VVS 14 NPT M
NPTF 1/4" FEMALE
Specs
Working Pressure:
80.0
80.0
Mpa
Flow Rate:
8 (l/min) at 0.2 MPa
Temperature:
-25°C to 125°C
Seals:
NBR
Weight:
g
32
1,26
28
1,1
48
1,89
防尘帽
配件与备件
防尘帽 - 阴接头
订货号
颜色
材质
Dust 防尘帽 - 阴接头
订货号
颜色
Material
技术标准
Burst pressure (MPa)
Dash Size
Size (
mm
mm
)
Working Pressure (MPa)
Flow Rate (l/min)
Spillage (ml)
Force to connect (N)
Male
Burst pressure (MPa)
Female
Burst pressure (MPa)
Male + Female
Burst pressure (MPa)
2xx
50
35.0
1000
46
0
130
130
105
1-1/2xx
37,5
40.0
300
38
0
120
150
150
1xx
25
63.0
100
8
0
190
240
190
1-1/4xx
31,5
60.0
140
15
0
180
180
200
1/2xx
12,5
70.0
40
1.3
0
210
210
210
3/4xx
20
70.0
55
1.8
0
240
210
230
3/8xx
10
80.0
18
0.8
0
340
350
240
1/4xx
6,3
80.0
8
0.4
0
240
240
250
1/4'xx
80.0
8
0.4
0
240
240
250
3/8'xx
10
80.0
18
0.8
0
340
350
240
1/2'xx
70.0
40
1.3
0
210
210
210
3/4'xx
20
70.0
55
1.8
0
240
210
230
1'xx
25
63.0
100
0
190
240
190
1-1/4'xx
60.0
140
0
180
180
200
1-1/2'xx
40.0
300
0
120
150
150
2'xx
50
35.0
1000
0
130
130
105
Material:
碳钢
密封件:
NBR
Working temperatures:
-25°C to 125 °C
Specifications:
Series Interchange:FASTER
Valve Type: 锥面阀
Connection:Screw to Connect
Disconnection: Unscrew to Disconnect
Connection Under Pressure: Allowed Residual
压降
图中所示的数据是指示性的，没有约束性。
(§) 1 MPa = 10 bar
零件尺寸是指定的。
Please wait...
This action may take few seconds
